6-position SPST DIP switch with a 1.27mm pitch, featuring recessed rocker actuators and gull wing SMD termination. This surface mount switch offers a 24VDC voltage rating and a 100mA contact current rating, with gold-plated copper alloy contacts. Constructed with a polyphenylene body and polymer actuator, it operates within a -30°C to 85°C temperature range and boasts a mechanical and electrical life of 1000 cycles. The switch is RoHS compliant, washable, sealable, and rated UL94 V-0 for flammability.
Current Rating100mA
MountingSurface Mount
Quick Jump:
Technical Specifications
TE Connectivity 1571983-8 technical specifications.
General
| Actuator Length | 0mm |
| Actuator Material | Polymer |
| Body Material | Polyphenylene |
| Contact Current Rating | 100mA |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Current Rating | 100mA |
| Depth | 8.13mm |
| Electrical Life | 1000Cycles |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Height | 7.31mm |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 8.74mm |
| Max Current Rating | 25mA |
| Max Operating Temperature | 85°C |
| Mechanical Life | 1000Cycles |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (DC) | 24V |
| Mount | Surface Mount |
| Number of Circuits | 6 |
| Number of Positions | 6 |
| Orientation | Straight |
| Package Quantity | 50 |
| Packaging | Tape and Reel |
| Pitch | 1.27mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sealable | Yes (With) |
| Series | GDH |
| Terminal Pitch | 1.27mm |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| Type | Switch |
| DC Rated Voltage | 50V |
| Washable | Yes |
| Width | 8.13mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1571983-8 Datasheet
Download the complete datasheet for TE Connectivity 1571983-8 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

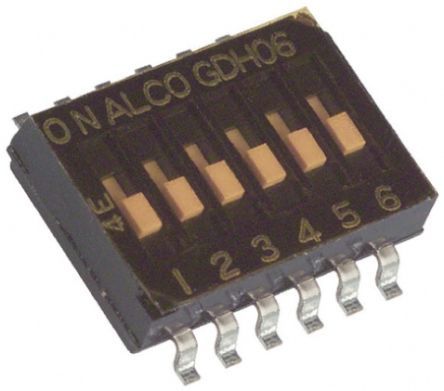

Product Images
