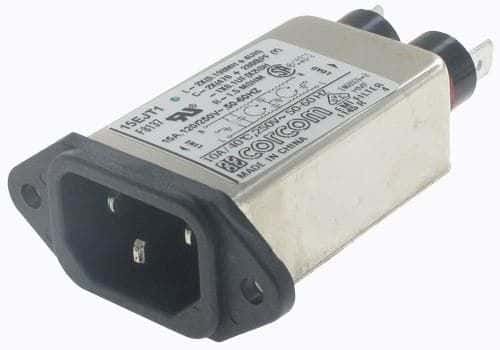

3-position, 1-port filtered power entry module with a 15A maximum current rating and 250VAC voltage rating. Features include 102nF capacitance, 0.2mH inductance, and a 250µA leakage current. Designed for panel mounting with screw flanges, it offers quick connect termination and operates at 50/60 Hz. This RoHS compliant component has a 3-pole configuration and a straight orientation.
Frequency50,60 Hz
Package200
Current10A
Capacitance102nF
Quick Jump:
Technical Specifications
TE Connectivity 15EJT1 technical specifications.
General
| Capacitance | 102nF |
| Package/Case | 200 |
| Current | 10A |
| Current Rating | 15A |
| Depth | 50.3mm |
| ELV | Compliant |
| Fuse | No |
| Gender | Male |
| Height | 22.2mm |
| Inductance | 0.2mH |
| Lead Free | Contains Lead |
| Leakage Current | 250uA |
| Max Current Rating | 15A |
| Max Operating Temperature | 40°C |
| Min Operating Temperature | -10°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Panel, Flanges, Screw |
| Number of Contacts | 3 |
| Number of Poles | 3 |
| Number of Ports | 1 |
| Number of Positions | 3 |
| Operating Frequency | 50,60 Hz |
| Orientation | Straight |
| Package Quantity | 40 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| Resistance | 6GR |
| RoHS Compliant | Yes |
| Series | EJT, Corcom |
| Termination | Quick Connect |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| Width | 72.9mm |
Compliance
| RoHS | Compliant |
