This 10A DPDT relay features a socket mount and a 10ms operate time. The relay's coil voltage is 28V DC and has a resistance of 320 ohms. It can handle a maximum current rating of 10A and is available in bulk packaging. The relay is not radiation hardened and is not RoHS compliant.
MountingSocket
Quick Jump:
Technical Specifications
TE Connectivity 1617749 technical specifications.
General
| Coil Current | 87.5mA |
| Coil Resistance | 320R |
| Coil Voltage (DC) | 28V |
| Contact Current Rating | 10A |
| Depth | 13.08mm |
| Length | 43.64mm |
| Max Current Rating | 10A |
| Mount | Socket |
| Operate Time | 10ms |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Termination | Solder |
| Throw Configuration | DPDT |
Compliance
| RoHS | Not CompliantNo |
Datasheet
TE Connectivity 1617749 Datasheet
Download the complete datasheet for TE Connectivity 1617749 to view detailed technical specifications.
No datasheet is available for this part.

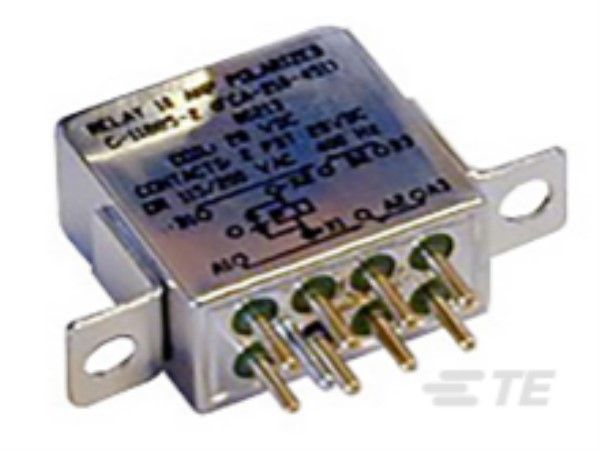

Product Images
