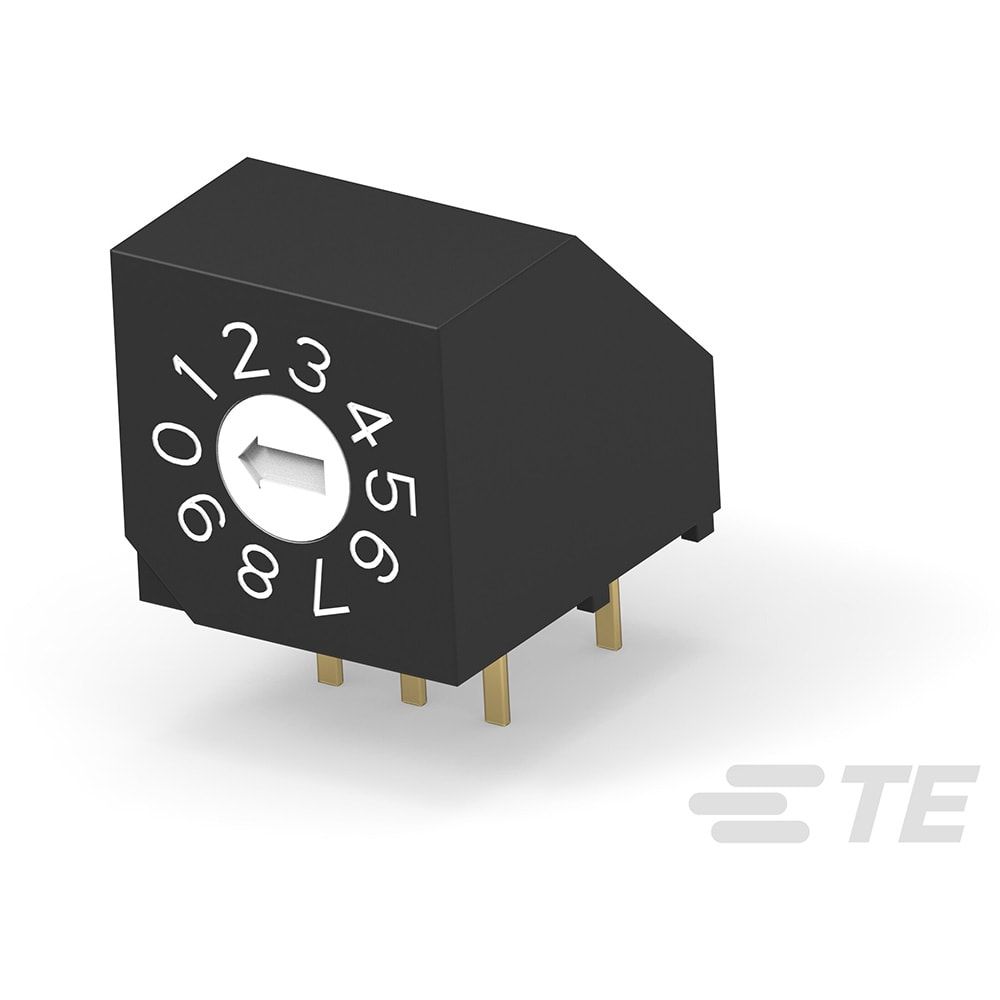

Rotary DIP switch featuring 16 positions and a SP16T throw configuration. Right-angle, through-hole mount with PC pin termination and a 2.54mm pitch. Polyphenylene body material with gold-plated copper alloy contacts. Operates within a -30°C to 85°C temperature range and rated for 20V AC/DC. UL94 V-0 flammability rating, RoHS and ELV compliant.
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 1825008-3 technical specifications.
General
Actuator Type
Rotary
Body Material
Polyphenylene
Contact Material
Copper Alloy
Contact Plating
Gold
Depth
12mm
ELV
Compliant
Flammability Rating
UL94 V-0
Housing Color
Black
Illumination Type
Illuminated
Lead Free
Lead Free
Length
10mm
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Max Voltage Rating (AC)
20V
Max Voltage Rating (DC)
20V
Mount
Through Hole
Number of Positions
16
Orientation
Right Angle
Packaging
Rail/Tube
Pitch
2.54mm
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
DRD
Termination
PC Pins
Throw Configuration
SP16T
Type
Switch
Voltage Rating (AC)
20V
DC Rated Voltage
20V
Washable
Yes
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1825008-3 Datasheet
Download the complete datasheet for TE Connectivity 1825008-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
