SPST DIP Switch with 6 positions and a slide actuator. Features gold-plated copper alloy contacts with a 1A contact current rating and 100mA max current rating. Operates at 24VDC max voltage and 5VDC rated voltage, with a mechanical and electrical life of 1000 cycles. Through-hole mount with 2.54mm terminal pitch and PC pin termination. Constructed with a polyphenylene body and polyamide actuator, offering a UL94 V-0 flammability rating and washable design.
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 1825057-5 technical specifications.
General
Actuator Length
1mm
Actuator Material
Polyamide
Actuator Type
Slide (Standard)
Body Material
Polyphenylene
Contact Current Rating
1A
Contact Material
Copper Alloy
Contact Plating
Gold
Contact Post Length
4mm
Depth
7.49mm
Electrical Life
1000Cycles
ELV
Compliant
Flammability Rating
UL94 V-0
Height
0.138inch
Housing Color
Black
Lead Free
Lead Free
Lead Length
4mm
Length
17.22mm
Max Current Rating
100mA
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Max Voltage Rating (DC)
24V
Mechanical Life
1000Cycles
Mount
Through Hole
Number of Circuits
6
Number of Positions
6
Orientation
Straight
Package Quantity
25
Packaging
Rail/Tube
Pitch
0.1inch
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
ADE
Terminal Pitch
2.54mm
Termination
PC Pins
Throw Configuration
SPST
Type
Switch
DC Rated Voltage
5V
Washable
Yes
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1825057-5 Datasheet
Download the complete datasheet for TE Connectivity 1825057-5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

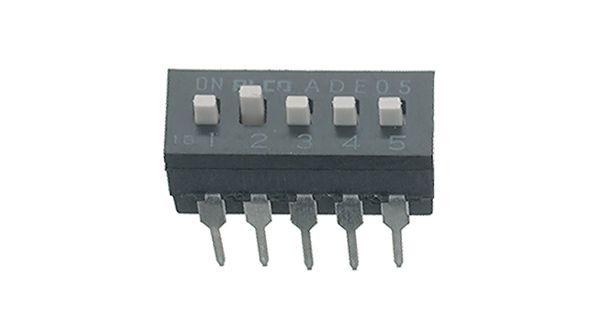

Product Images
