SPST DIP switch featuring a standard slide actuator and gull wing termination for surface mount applications. This component offers a 2.54mm terminal pitch and a 0.1A contact current rating at 24VDC, with a maximum operating temperature of 85°C. Constructed with a polyphenylene body and gold-plated copper alloy contacts, it provides 2 positions and a mechanical/electrical life of 1000 cycles. The switch is RoHS compliant and washable.
MountingSurface Mount
Quick Jump:
Technical Specifications
TE Connectivity 1825059-1 technical specifications.
General
| Actuator Length | 0mm |
| Actuator Material | Polyamide |
| Actuator Type | Slide (Standard) |
| Body Material | Polyphenylene |
| Contact Current Rating | 1A |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Depth | 9.3mm |
| Electrical Life | 1000Cycles |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Height | 0.138inch |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 7.06mm |
| Max Current Rating | 100mA |
| Max Operating Temperature | 85°C |
| Mechanical Life | 1000Cycles |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (DC) | 24V |
| Mount | Surface Mount |
| Number of Positions | 2 |
| Orientation | Straight |
| Package Quantity | 60 |
| Packaging | Tape and Reel |
| Pitch | 0.1inch |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | ADF |
| Terminal Pitch | 2.54mm |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| Type | Switch |
| DC Rated Voltage | 5V |
| Washable | Yes |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1825059-1 Datasheet
Download the complete datasheet for TE Connectivity 1825059-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

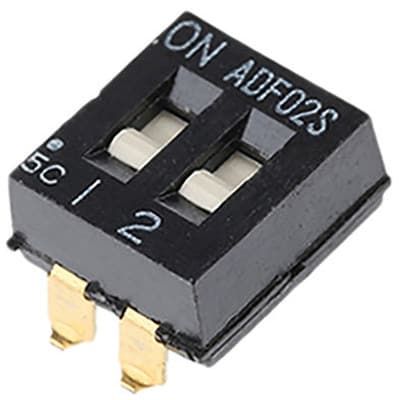

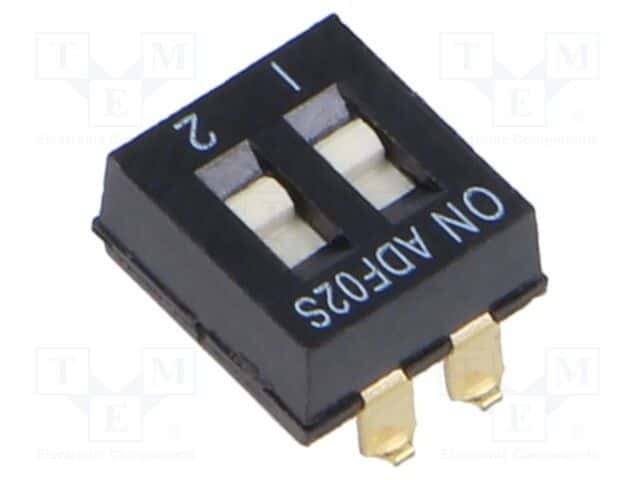

Product Images
