Illuminated & Non-Illuminated Pushbutton Switch featuring a momentary, SPDT (Single Pole Double Throw) contact configuration. This through-hole mounted component offers PC pin termination and a round plunger actuator with a thermoplastic construction. Rated for 20VAC/20VDC and 400mA, it boasts a gold-plated copper alloy contact material for enhanced conductivity and an electrical life of 100,000 cycles. Operating within a temperature range of -30°C to 65°C, this RoHS and ELV compliant switch is supplied in bulk packaging.
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 1825096-7 technical specifications.
General
| Actuator Length | 3.85mm |
| Actuator Material | Thermoplastic |
| Actuator Type | PLUNGER |
| Contact Current Rating | 400mA |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Depth | 5.23mm |
| Electrical Life | 100000Cycles |
| ELV | Compliant |
| Length | 8.13mm |
| Max Operating Temperature | 65°C |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (AC) | 20V |
| Max Voltage Rating (DC) | 20V |
| Mount | Through Hole |
| Package Quantity | 1000 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | TP, Alcoswitch |
| Switch Function | On-Mom |
| Termination | PC Pins |
| Throw Configuration | SPDT |
| Type | Switch |
| Voltage Rating (AC) | 20V |
| DC Rated Voltage | 20V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1825096-7 Datasheet
Download the complete datasheet for TE Connectivity 1825096-7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

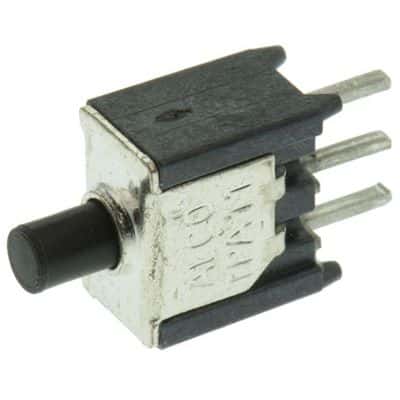

Product Images
