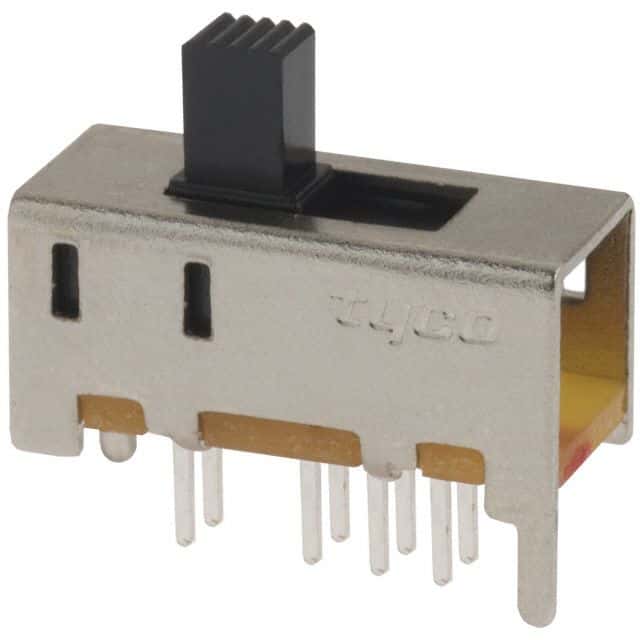

DP3T Slide Switch, Through Hole Mount, featuring a 4.5mm thermoplastic actuator and 3 positions. This switch offers a 300mA contact current rating with silver-plated copper alloy contacts and a 15,000 cycle electrical and mechanical life. Operating across a temperature range of -20°C to 85°C, it supports a 125V AC maximum voltage rating and utilizes PC pin termination.
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 1825289-8 technical specifications.
General
| Actuator Length | 4.5mm |
| Actuator Material | Thermoplastic |
| Actuator Type | Standard |
| Contact Current Rating | 300mA |
| Contact Material | Copper Alloy |
| Contact Plating | Silver |
| Depth | 6.7mm |
| Electrical Life | 15000Cycles |
| ELV | Compliant |
| Flammability Rating | UL94 HB |
| Lead Free | Lead Free |
| Length | 0.5906inch |
| Max Current Rating | 300mA |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (AC) | 125V |
| Mechanical Life | 15000Cycles |
| Min Operating Temperature | -20°C |
| Mount | Through Hole |
| Number of Positions | 3 |
| Operating Force | 600gf |
| Operating Supply Voltage | 125V |
| Packaging | Tray |
| PCB Mount Retention | With |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | MHS |
| Switch Function | On-On-On |
| Switch Travel | 2mm |
| Tail Length | 3.51mm |
| Termination | PC Pins |
| Throw Configuration | DP3T |
| Type | Switch |
| Voltage Rating (AC) | 125V |
| Width | 6.2mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1825289-8 Datasheet
Download the complete datasheet for TE Connectivity 1825289-8 to view detailed technical specifications.
