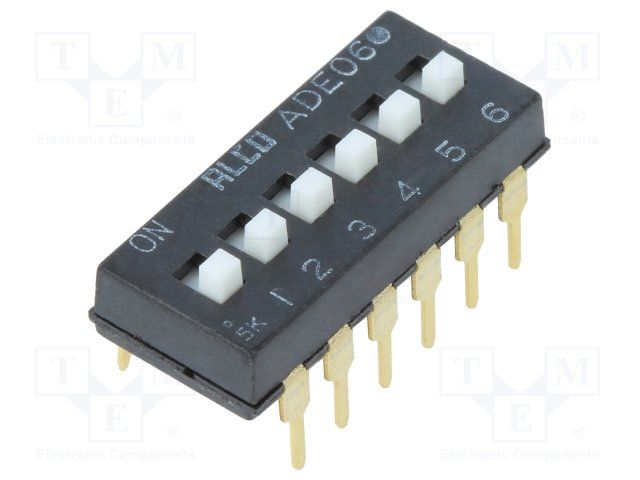

6-position SPST DIP switch with a standard slide actuator. Features gold-plated copper alloy contacts rated for 1A and 24VDC, with a maximum current of 100mA. Through-hole mounting with 2.54mm terminal pitch and PC pin termination. Operates within a temperature range of -30°C to 85°C, offering 1000 electrical and mechanical cycles. Housing is black Polyphenylene with a Polybutylene actuator, meeting UL94 V-0 flammability rating and RoHS compliance.
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 1825360-4 technical specifications.
General
| Actuator Length | 0.99mm |
| Actuator Material | Polybutylene |
| Actuator Type | Slide (Standard) |
| Body Material | Polyphenylene |
| Contact Current Rating | 1A |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Contact Post Length | 4mm |
| Depth | 7.49mm |
| Electrical Life | 1000Cycles |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Height | 0.138inch |
| Housing Color | Black |
| Length | 0.676inch |
| Max Current Rating | 100mA |
| Max Operating Temperature | 85°C |
| Mechanical Life | 1000Cycles |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (DC) | 24V |
| Mount | Through Hole |
| Number of Circuits | 6 |
| Number of Positions | 6 |
| Orientation | Straight |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Pitch | 0.1inch |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | ADE |
| Terminal Pitch | 2.54mm |
| Termination | PC Pins |
| Throw Configuration | SPST |
| Type | Switch |
| DC Rated Voltage | 5V |
| Washable | Yes |
