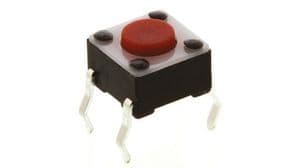

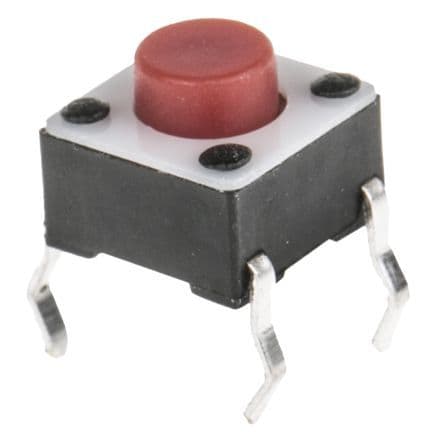

Tactile switch featuring a red PBT actuator with a 0.055-inch length and standard actuator type. This non-illuminated or illuminated switch offers a 50mA contact current rating with silver-plated copper alloy contacts and a 24V DC voltage rating. Designed for through-hole mounting with PC pin termination, it provides 100,000 electrical and mechanical life cycles, operating between -35°C and 85°C with a 2.55N operating force and 0.25mm travel.
Current Rating50mA
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 1825910-7 technical specifications.
General
| Actuator Color | Red |
| Actuator Length | 0.055inch |
| Actuator Material | PBT |
| Actuator Type | Standard |
| Color | Black |
| Contact Current Rating | 50mA |
| Contact Material | Copper Alloy |
| Contact Plating | Silver |
| Current Rating | 50mA |
| Depth | 7.8mm |
| Electrical Life | 100000Cycles |
| ELV | Compliant |
| Illumination Type | Non-Illuminated, Illuminated |
| Lead Free | Lead Free |
| Length | 5.99mm |
| Max Current Rating | 50mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -35°C |
| Max Voltage Rating (DC) | 24V |
| Mechanical Life | 100000Cycles |
| Mount | Through Hole |
| Number of Positions | 2 |
| Operating Force | 2.55N |
| Orientation | Straight |
| Packaging | Loose Piece |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | FSMJ |
| Switch Function | Off-Mom |
| Switch Travel | 0.25mm |
| Termination | PC Pins |
| Throw Configuration | SPST |
| Type | Switch |
| DC Rated Voltage | 24V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1825910-7 Datasheet
Download the complete datasheet for TE Connectivity 1825910-7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
