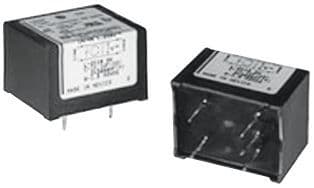

Single-phase EMI/RFI power line filter designed for 250V AC operation at 50/60Hz. Features a 1A current rating, 20mF capacitance, and 250uA leakage current. This through-hole, PCB-mountable component operates within a temperature range of -10°C to 40°C and is RoHS compliant. Approvals include UL, CSA, and VDE.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TE Connectivity 1EOP datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TE Connectivity 1EOP technical specifications.
| Approvals | UL, CSA, VDE |
| Capacitance | 20mF |
| Current Rating | 1A |
| Depth | 31.5mm |
| Frequency | 60Hz |
| Height | 19.9mm |
| Lead Free | Lead Free |
| Leakage Current | 250uA |
| Length | 36.6mm |
| Max Current Rating | 1A |
| Max Operating Temperature | 40°C |
| Min Operating Temperature | -10°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Through Hole, PCB |
| Number of Phases | 1 |
| Operating Frequency | N/A |
| Package Quantity | 25 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | EOP |
| Termination | PCB |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| RoHS | Compliant |
