20A, 250VAC power line filter designed for EMI/RFI suppression at 50Hz/60Hz. Features quick connect termination and chassis/flange/panel mount capability. Includes 2.2uF capacitance and a leakage current of 730uA. Operates within a temperature range of -10°C to 40°C. UL approved and RoHS compliant.
Frequency50|60 Hz
Package405
Current20A
Capacitance2.2uF
Quick Jump:
Technical Specifications
TE Connectivity 20EMC1 technical specifications.
General
| Approvals | UL |
| Capacitance | 2.2uF |
| Package/Case | 405 |
| Current | 20A |
| Current Rating | 20A |
| Depth | 45.2mm |
| ELV | Compliant |
| Lead Free | Lead Free |
| Leakage Current | 730uA |
| Length | 126.2mm |
| Max Current Rating | 20A |
| Max Operating Temperature | 40°C |
| Min Operating Temperature | -10°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Chassis Mount, Flanges, Panel |
| Operating Frequency | 50|60 Hz |
| Package Quantity | 8 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | N |
| Termination | Quick Connect |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
| Width | 57.2mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 20EMC1 Datasheet
Download the complete datasheet for TE Connectivity 20EMC1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

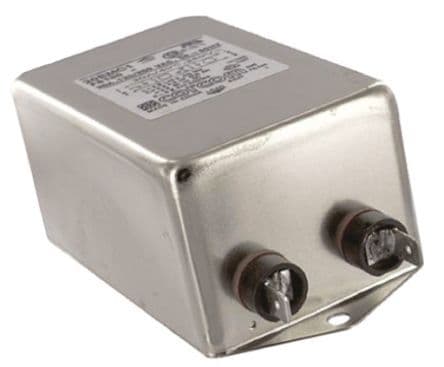

Product Images
