General purpose SPDT signal relay featuring a 12VDC non-latching coil with 250mW power consumption and 576Ω resistance. Offers a 10A contact current rating with silver contact material and a maximum AC voltage rating of 400V. Designed for through-hole mounting with PC pin termination, this relay operates within a temperature range of -40°C to 85°C and boasts an IP54 rating.
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 3-1393239-8 technical specifications.
General
| Coil Current | 20.8mA |
| Coil Power | 250mW |
| Coil Resistance | 576R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 12V |
| Contact Current Rating | 10A |
| Contact Material | Silver, Agni90/10 |
| Depth | 12.7mm |
| Lead Free | Lead Free |
| Length | 29mm |
| Max Current Rating | 15A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 400V |
| Mount | Through Hole |
| Operate Time | 10ms |
| Package Quantity | 20 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Ratings | IP54 |
| Reach SVHC Compliant | Unknown |
| Relay Type | General Purpose |
| Release Time | 8ms |
| RoHS Compliant | Yes |
| Series | RT1, SCHRACK |
| Switching Current | 10A |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 400V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 3-1393239-8 Datasheet
Download the complete datasheet for TE Connectivity 3-1393239-8 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

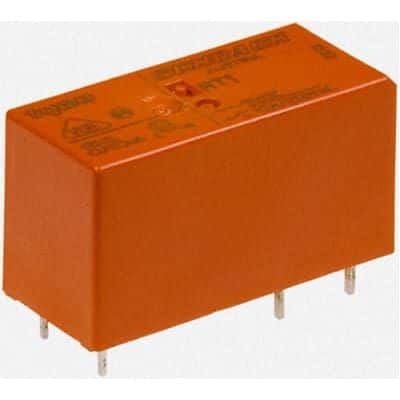

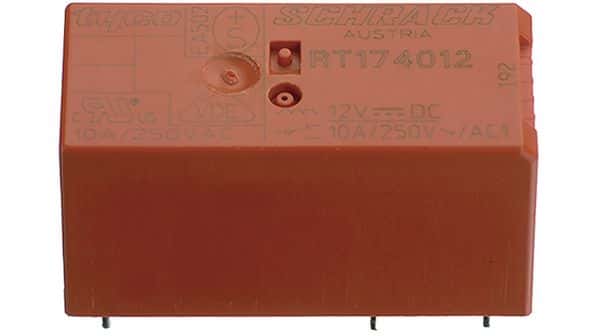

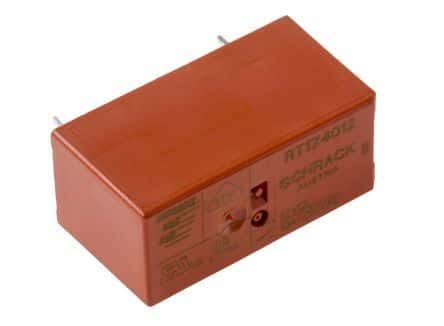

Product Images
