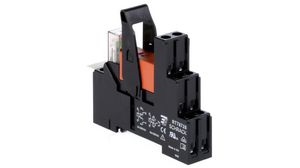

DPDT power relay with 8A contact current rating and 240VAC contact voltage rating. Features AC actuating system with 230VAC coil voltage, 3.2mA coil current, 740mW coil power, and 32.5kΩ coil resistance. Silver contacts with gold plating ensure reliable switching up to 250VAC. Mounts via DIN rail with screw termination, operating between -20°C and 70°C. Dimensions are 77mm length, 15.8mm width, and 69mm height.
MountingDIN Rail
Quick Jump:
Technical Specifications
TE Connectivity 3-1415073-1 technical specifications.
General
| Actuating System | AC |
| Coil Current | 3.2mA |
| Coil Power | 740mW |
| Coil Resistance | 32.5kR |
| Coil Type | Non-Latching |
| Coil Voltage (AC) | 230V |
| Contact Current Rating | 8A |
| Contact Material | Silver |
| Contact Plating | Gold |
| Contact Type | 2 CO, DPDT |
| Contact Voltage Rating (AC) | 240V |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Height | 69mm |
| Length | 77mm |
| Load Current | 8A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (AC) | 400V |
| Mount | DIN Rail |
| Package Quantity | 10 |
| Packaging | Carton |
| Reach SVHC Compliant | Unknown |
| Relay Type | General Purpose |
| RoHS Compliant | Yes |
| Series | RT, SCHRACK |
| Switching Current | 8A |
| Switching Voltage | 250V |
| Termination | Screw |
| Throw Configuration | DPDT |
| Weight | 1.905oz |
| Width | 15.8mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 3-1415073-1 Datasheet
Download the complete datasheet for TE Connectivity 3-1415073-1 to view detailed technical specifications.
