DPDT signal relay with a 12VDC coil voltage and 4.2mA coil current, featuring a 2A contact current rating and 220VDC contact voltage rating. This through-hole mount component offers gold contact plating with ruthenium for enhanced performance, operating within a -40°C to 85°C temperature range. With a 3ms operate and release time, it is RoHS and ELV compliant.
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 3-1462039-2 technical specifications.
General
Actuating System
DC
Coil Current
4.2mA
Coil Power
50mW
Coil Resistance
2.88kR
Coil Type
Non-Latching
Coil Voltage (DC)
12V
Contact Current Rating
2A
Contact Material
Gold, Ruthenium
Contact Plating
Gold
Contact Voltage Rating (DC)
220V
ELV
Compliant
Height
5.8mm
Insertion Loss
-0.03dB
Length
10inch
Max Current Rating
2A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
220V
Mount
Through Hole
Operate Time
3ms
Packaging
Rail/Tube
Relay Type
Relay
Release Time
3ms
RoHS Compliant
Yes
Series
IM, AXICOM
Termination
PCB
Throw Configuration
DPDT
Weight
0.75oz
Width
6mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 3-1462039-2 Datasheet
Download the complete datasheet for TE Connectivity 3-1462039-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

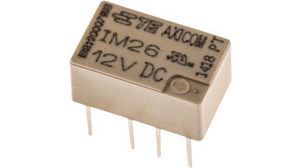

Product Images
