3-435668-0

Datasheet

10 Pos Rotary DIP Switch, Rocker Actuator, Gold Contacts, 40VDC

TE Connectivity

3-435668-0

Name: 3-435668-0 TE Connectivity
Brand: TE Connectivity
SKU: 3-435668-0

10 Pos Rotary DIP Switch, Rocker Actuator, Gold Contacts, 40VDC

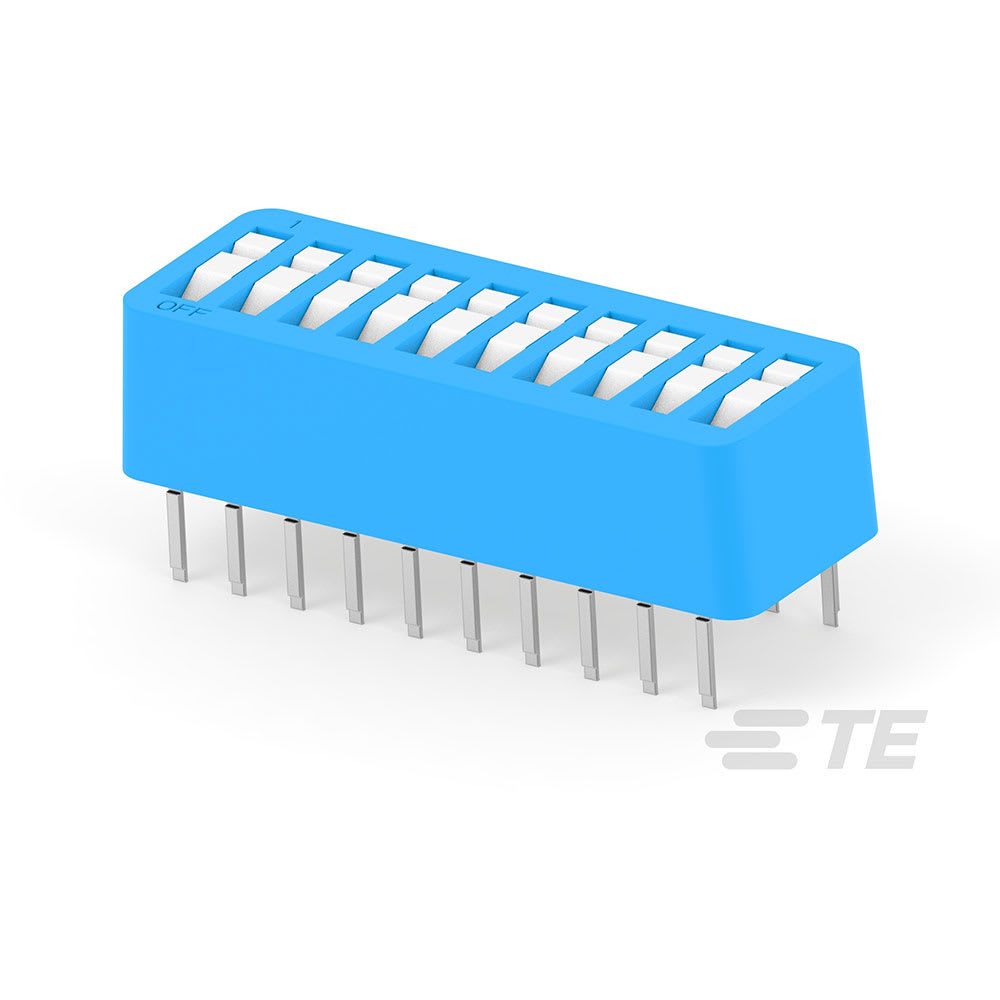

10-position rotary and slide actuator DIP switch featuring a straight, through-hole mount with PC pin termination. This rocker actuator switch offers a 1A contact current rating with gold-plated copper alloy contacts and a 40V DC rated voltage. Designed for 2000 electrical and mechanical cycles, it operates within a -55°C to 105°C temperature range and is sealable and washable. The blue housing is constructed from glass, PET, and polyester, with a UL94 V-0 flammability rating.

MountingThrough Hole

Quick Jump:

Pricing & Availability

Checking distributor stock and pricing after the page loads.

Chat with Datasheet

Technical Specifications

TE Connectivity 3-435668-0 technical specifications.

General

Actuator Length	0mm
Actuator Type	Rocker
Body Material	Glass, PET, Polyester
Contact Current Rating	1A
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Post Length	0.14inch
Electrical Life	2000Cycles
ELV	Compliant
Flammability Rating	UL94 V-0
Height	0.29inch
Housing Color	Blue
Lead Free	Lead Free
Lead Length	3.556mm
Length	27.43mm
Max Operating Temperature	105°C
Mechanical Life	2000Cycles
Min Operating Temperature	-55°C
Mount	Through Hole
Number of Positions	10
Orientation	Straight
Package Quantity	11
Packaging	Rail/Tube
Pitch	0.1inch
Radiation Hardening	No
RoHS Compliant	No
Sealable	Yes (With)
Series	7100
Terminal Pitch	2.54mm
Termination	PC Pins
Throw Configuration	SPST
Type	Switch
DC Rated Voltage	40V
Washable	Yes
