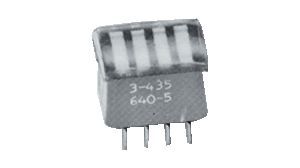

SPST Rotary & Slide Actuator DIP Switch featuring 4 positions and 4 circuits. This through-hole mount switch offers a 1A contact current rating at 40VDC, with gold-plated copper alloy contacts and a mechanical/electrical life of 2000 cycles. It boasts a polyester rocker actuator, glass/PET/polyester body, and a 2.54mm terminal pitch. The unit is RoHS compliant, lead-free, washable, and operates within a -55°C to 105°C temperature range.
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 3-5435640-5 technical specifications.
General
| Actuator Length | 1.27mm |
| Actuator Material | Polyester |
| Actuator Type | Rocker |
| Body Material | Glass, PET, Polyester |
| Contact Current Rating | 1A |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Contact Post Length | 0.14inch |
| Depth | 9.65mm |
| Electrical Life | 2000Cycles |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Height | 0.34inch |
| Housing Color | Blue |
| Lead Free | Lead Free |
| Lead Length | 3.556mm |
| Length | 12.19mm |
| Max Operating Temperature | 105°C |
| Mechanical Life | 2000Cycles |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Circuits | 4 |
| Number of Positions | 4 |
| Orientation | Straight |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Pitch | 0.1inch |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | Yes (With) |
| Series | 7100 |
| Terminal Pitch | 2.54mm |
| Termination | PC Pins |
| Throw Configuration | SPST |
| Type | Switch |
| DC Rated Voltage | 40V |
| Washable | Yes |
Compliance
| RoHS | Compliant |
