DPDT general purpose electromechanical relay featuring a DC actuating system with a 26.5VDC coil voltage and 19.63mA coil current. This through-hole mount relay offers a 2A contact current rating at 28VDC and a 4ms operate/release time. Designed for demanding applications, it operates within a temperature range of -65°C to 125°C and boasts a mechanical life of 50,000 hours.
PackageDIP
Current Rating2A
MountingThrough Hole, PCB
Power50mW
Quick Jump:
Technical Specifications
TE Connectivity 3SBC2002A2 technical specifications.
General
| Actuating System | DC |
| Package/Case | DIP |
| Coil Current | 19.63mA |
| Coil Power | 520mW |
| Coil Resistance | 1.35kR |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 26.5V |
| Contact Current Rating | 2A |
| Current Rating | 2A |
| Depth | 7.87mm |
| Height | 8.1mm |
| Length | 15.49mm |
| Life (Hours) | 50000Hour |
| Max Current Rating | 2A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -65°C |
| Max Voltage Rating (DC) | 28V |
| Mount | Through Hole, PCB |
| Operate Time | 4ms |
| Packaging | Bulk |
| Power Consumption | 50mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Relay Type | General Purpose |
| Release Time | 4ms |
| RoHS Compliant | No |
| Series | Military, MIL-R-39016/13, 3SBC, CII |
| Termination | PC Pins |
| Throw Configuration | DPDT |
| DC Rated Voltage | 28V |
| Width | 0.31inch |
Compliance
| RoHS | Not CompliantNo |
Datasheet
TE Connectivity 3SBC2002A2 Datasheet
Download the complete datasheet for TE Connectivity 3SBC2002A2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

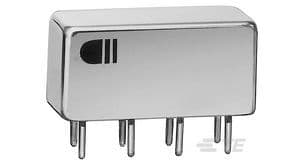

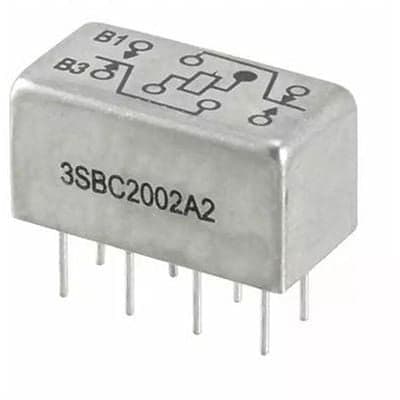

Product Images
