DPDT signal relay with a 2A contact current rating and 220V DC contact voltage rating. Features a 12V DC coil voltage, 1.029kΩ coil resistance, and 140mW coil power. Surface mount termination with gold-plated contacts for reliable signal integrity. Operates within a -40°C to 85°C temperature range and offers a 1ms operate time.
Quick Jump:
Technical Specifications
TE Connectivity 4-1462037-6 technical specifications.
General
| Actuating System | DC |
| Coil Current | 11.67mA |
| Coil Power | 140mW |
| Coil Resistance | 1.029kR |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 12V |
| Contact Current Rating | 2A |
| Contact Material | Gold, Ruthenium |
| Contact Plating | Gold |
| Contact Voltage Rating (DC) | 220V |
| Depth | 6mm |
| Height | 0.221inch |
| Insertion Loss | -0.03dB |
| Length | 10inch |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Operate Time | 1ms |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Termination | PCB |
| Throw Configuration | DPDT |
| Weight | 0.75oz |
| Width | 6mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 4-1462037-6 Datasheet
Download the complete datasheet for TE Connectivity 4-1462037-6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

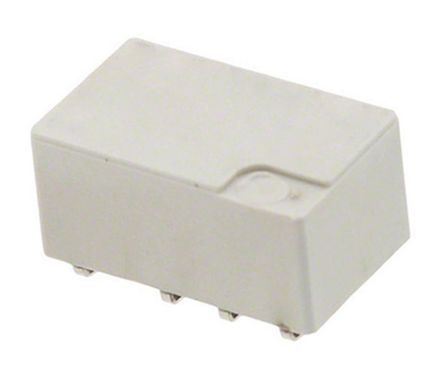

Product Images
