8-position, SPST slide actuator DIP switch featuring a 0.1-inch terminal pitch and gull wing surface mount termination. This switch offers a 1A contact current rating with gold-plated copper alloy contacts and a 24V DC maximum voltage rating. Designed for a 1000-cycle electrical and mechanical life, it operates within a -30°C to 85°C temperature range and is sealed and washable.
Current Rating1A
MountingSurface Mount
Quick Jump:
Technical Specifications
TE Connectivity 4-1825059-2 technical specifications.
General
| Actuator Length | 0mm |
| Actuator Material | Polyamide |
| Actuator Type | Slide (Standard) |
| Body Material | Polyphenylene |
| Contact Current Rating | 1A |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Current Rating | 1A |
| Depth | 9.3mm |
| Electrical Life | 1000Cycles |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Height | 0.138inch |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 0.878inch |
| Max Current Rating | 100mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (DC) | 24V |
| Mechanical Life | 1000Cycles |
| Mount | Surface Mount |
| Number of Circuits | 8 |
| Number of Positions | 8 |
| Orientation | Straight |
| Package Quantity | 750 |
| Packaging | Tape and Reel |
| Pitch | 0.1inch |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sealable | Yes (With) |
| Series | ADF |
| Terminal Pitch | 2.54mm |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| Type | Switch |
| DC Rated Voltage | 5V |
| Washable | Yes |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 4-1825059-2 Datasheet
Download the complete datasheet for TE Connectivity 4-1825059-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

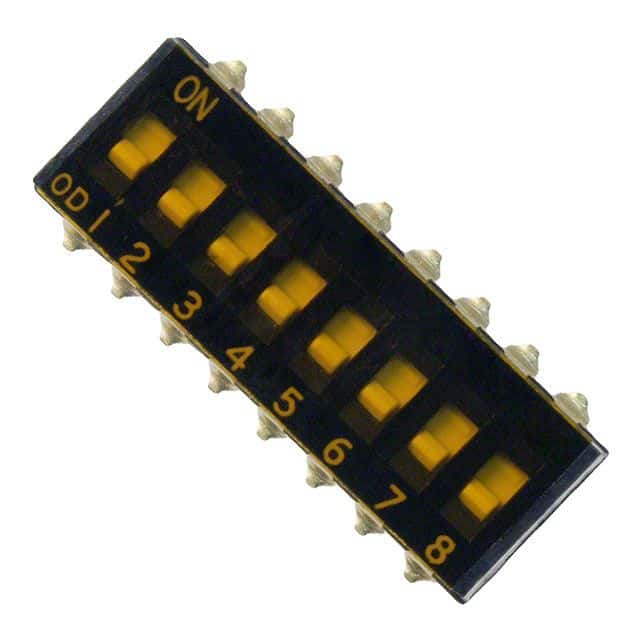

Product Images
