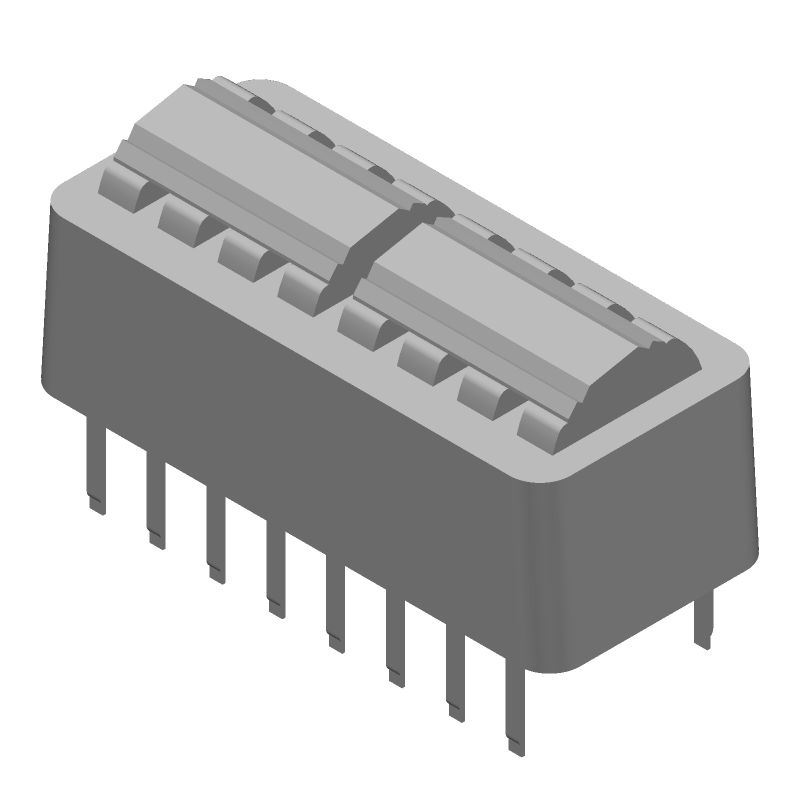

DPDT Rotary & Slide Actuator DIP Switch featuring 8 positions and PC pin termination with a 2.54mm terminal pitch. Offers a 1.5A contact current rating and 24VDC maximum voltage rating, with gold-plated copper alloy contacts. Operates across a -55°C to 105°C temperature range and boasts a mechanical and electrical life of 7000 cycles. Constructed with glass, PET, and polyester body materials, it has a UL94 V-0 flammability rating and is designed for through-hole mounting.
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 435470-9 technical specifications.
General
Actuator Type
Standard
Body Material
Glass, PET, Polyester
Contact Current Rating
1.5A
Contact Material
Copper Alloy
Contact Plating
Gold
Contact Post Length
0.14inch
Electrical Life
7000Cycles
Flammability Rating
UL94 V-0
Height
0.36inch
Housing Color
Black
Length
0.88inch
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Max Voltage Rating (DC)
24V
Mechanical Life
7000Cycles
Mount
Through Hole
Number of Positions
8
Package Quantity
14
Packaging
Rail/Tube
Pitch
0.1inch
Radiation Hardening
No
RoHS Compliant
No
Sealable
No (Without)
Series
7000
Terminal Pitch
2.54mm
Termination
PC Pin
Throw Configuration
DPDT
Type
Switch
DC Rated Voltage
50V
Washable
No
Compliance
RoHS
Not CompliantNo
Datasheet
TE Connectivity 435470-9 Datasheet
Download the complete datasheet for TE Connectivity 435470-9 to view detailed technical specifications.
