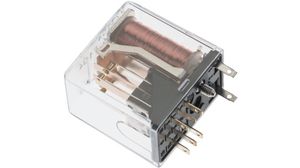

DPDT power relay with a 5A current rating and 2A contact current rating. Features gold contact material and plating for enhanced conductivity. Operates with a 12V DC coil voltage, 54.5mA coil current, and 1.008W coil power. This non-latching, general-purpose relay offers a 7.5ms operate time and 3ms release time, suitable for signal applications. Mounts via socket termination and operates within a -40°C to 70°C temperature range.
Current Rating5A
MountingSocket
Power800mW
Quick Jump:
Technical Specifications
TE Connectivity 5-1393808-4 technical specifications.
General
| Actuating System | AC/DC |
| Application(s) | SIGNAL |
| Coil Current | 54.5mA |
| Coil Power | 1.008W |
| Coil Resistance | 220R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 12V |
| Contact Current Rating | 2A |
| Contact Material | Gold |
| Contact Plating | Gold |
| Contact Voltage Rating (DC) | 250V |
| Current Rating | 5A |
| Depth | 30mm |
| ELV | Compliant |
| Height | 30mm |
| Lead Free | Lead Free |
| Length | 1.181inch |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Mount | Socket |
| Operate Time | 7.5ms |
| Package Quantity | 50 |
| Packaging | Box |
| Power Consumption | 800mW |
| Relay Type | Relay |
| Release Time | 3ms |
| RoHS Compliant | Yes |
| Series | V23154, AXICOM |
| Termination | Plug |
| Throw Configuration | DPDT |
| Weight | 25g |
| Width | 0.748inch |
Compliance
| RoHS | Compliant |
