5-435166-3

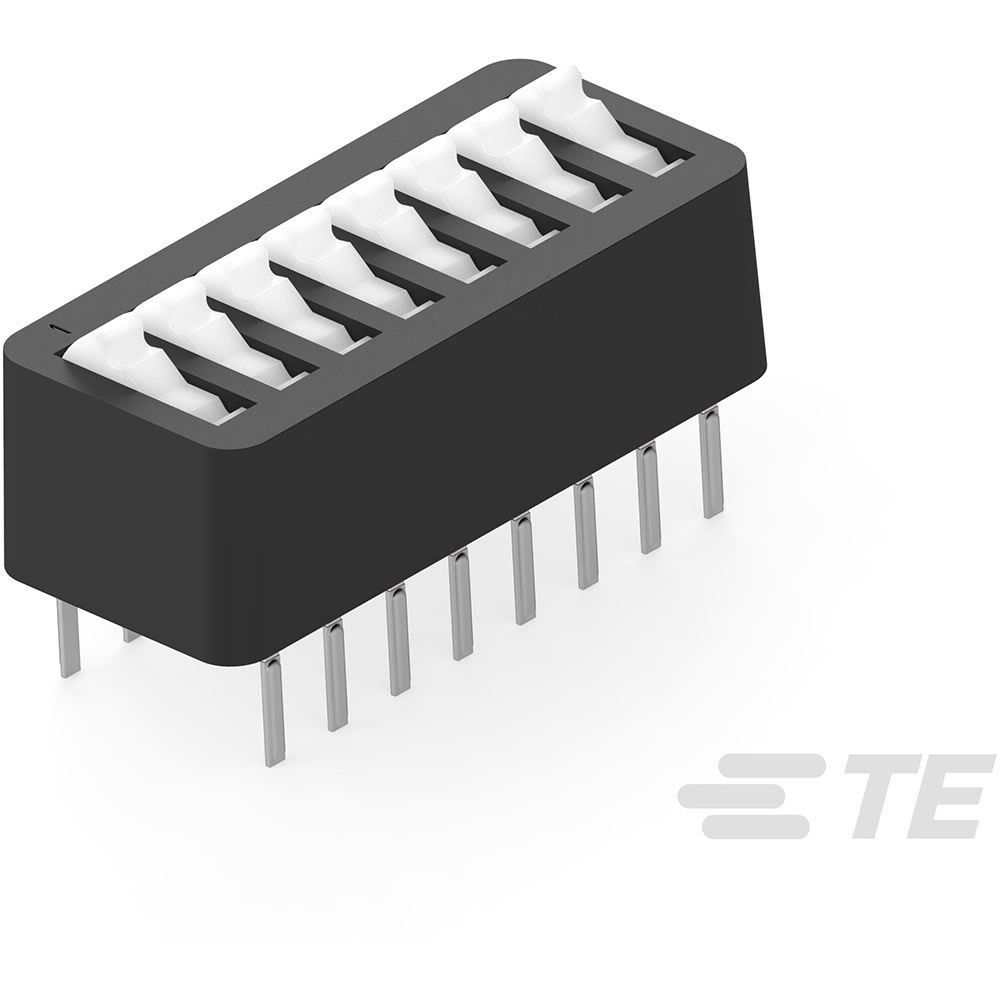

8-position SPST rotary and slide actuator DIP switch featuring raised rocker actuators and PC pin termination. This through-hole mount switch offers a 2.54mm terminal pitch, 0.1A max current rating at 24VDC, and a contact current rating of 1.5A with gold-plated copper contacts. Operating across a -55°C to 105°C temperature range, it boasts 7000 electrical and mechanical life cycles and is washable and sealable. The thermoplastic actuator and glass/PET/polyester body contribute to its UL94 V-0 flammability rating.
