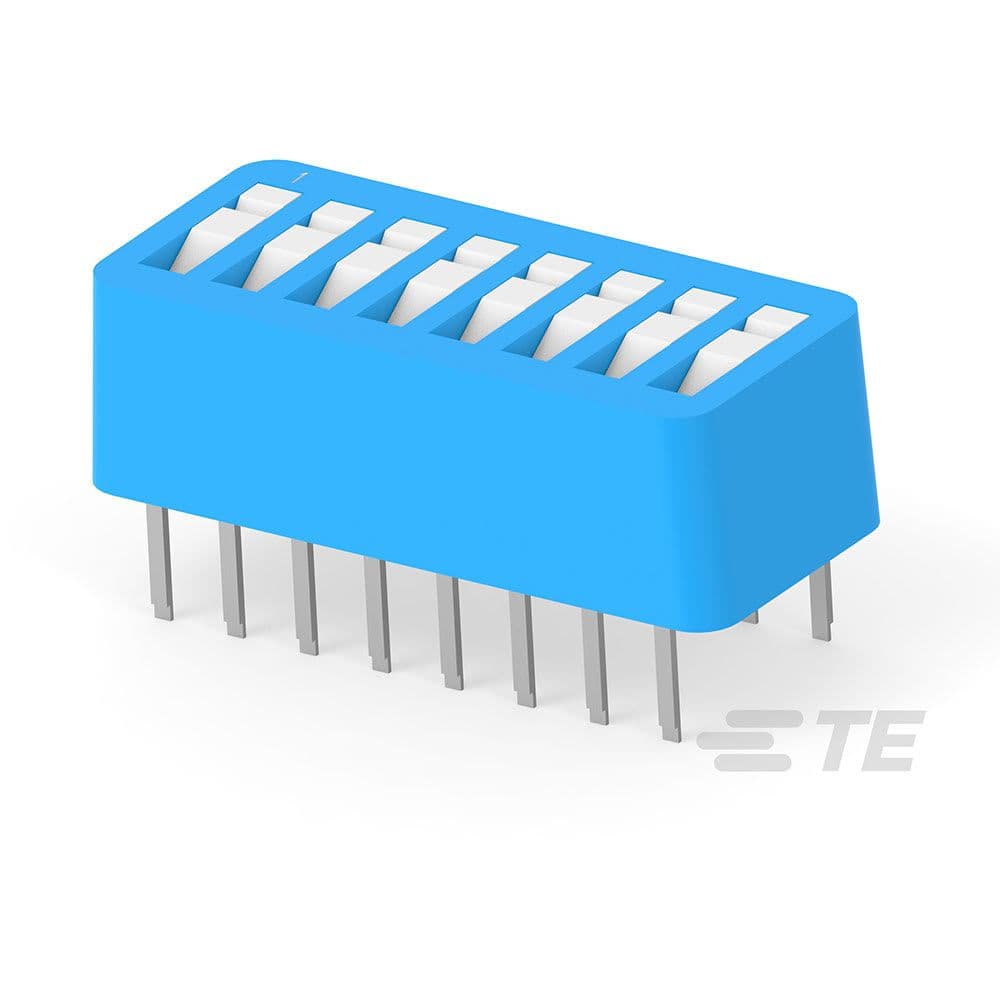

8-position, SPST DIP switch featuring a low-profile rocker actuator and straight, through-hole mounted PC pin termination. This electromechanical component offers a 1A contact current rating with gold-plated copper alloy contacts and a 0.1-inch terminal pitch. The blue housing has a height of 0.29 inches and a length of 0.88 inches, with a UL94 V-0 flammability rating. DC rated voltage is 40V, and the product is RoHS compliant.
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 5435668-7 technical specifications.
General
| Actuator Type | Rocker |
| Contact Current Rating | 1A |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Contact Post Length | 0.14inch |
| Flammability Rating | UL94 V-0 |
| Height | 0.29inch |
| Housing Color | Blue |
| Length | 0.88inch |
| Mount | Through Hole |
| Number of Positions | 8 |
| Orientation | Straight |
| Package Quantity | 14 |
| Packaging | Rail/Tube |
| Pitch | 0.1inch |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | 7100 |
| Terminal Pitch | 2.54mm |
| Termination | PC Pins |
| Throw Configuration | SPST |
| Type | Switch |
| DC Rated Voltage | 40V |
| Washable | No |
Compliance
| RoHS | Compliant |
