Four-position, SPST rotary and slide actuator DIP switch with gold-plated copper alloy contacts and a 1.5A contact current rating. Features a polyester actuator, glass/PET/polyester body, and PC pin termination for through-hole mounting. Operates within a -55°C to 105°C temperature range with a 7000-cycle electrical and mechanical life. This RoHS compliant component has a 50V DC rated voltage and a 100mA current rating.
PackageDIP
Current Rating100mA
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 5435802-3 technical specifications.
General
| Actuator Material | Polyester |
| Actuator Type | PIANO |
| Body Material | Glass, PET, Polyester |
| Package/Case | DIP |
| Contact Current Rating | 1.5A |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Contact Post Length | 0.14inch |
| Current Rating | 100mA |
| Electrical Life | 7000Cycles |
| Flammability Rating | UL94 V-0 |
| Height | 0.29inch |
| Housing Color | Black |
| Length | 12.19mm |
| Max Operating Temperature | 105°C |
| Mechanical Life | 7000Cycles |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Positions | 4 |
| Orientation | Straight |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Pitch | 0.1inch |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | 7000 |
| Terminal Pitch | 2.54mm |
| Termination | PC Pins |
| Throw Configuration | SPST |
| Type | Switch |
| DC Rated Voltage | 50V |
| Washable | No |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 5435802-3 Datasheet
Download the complete datasheet for TE Connectivity 5435802-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

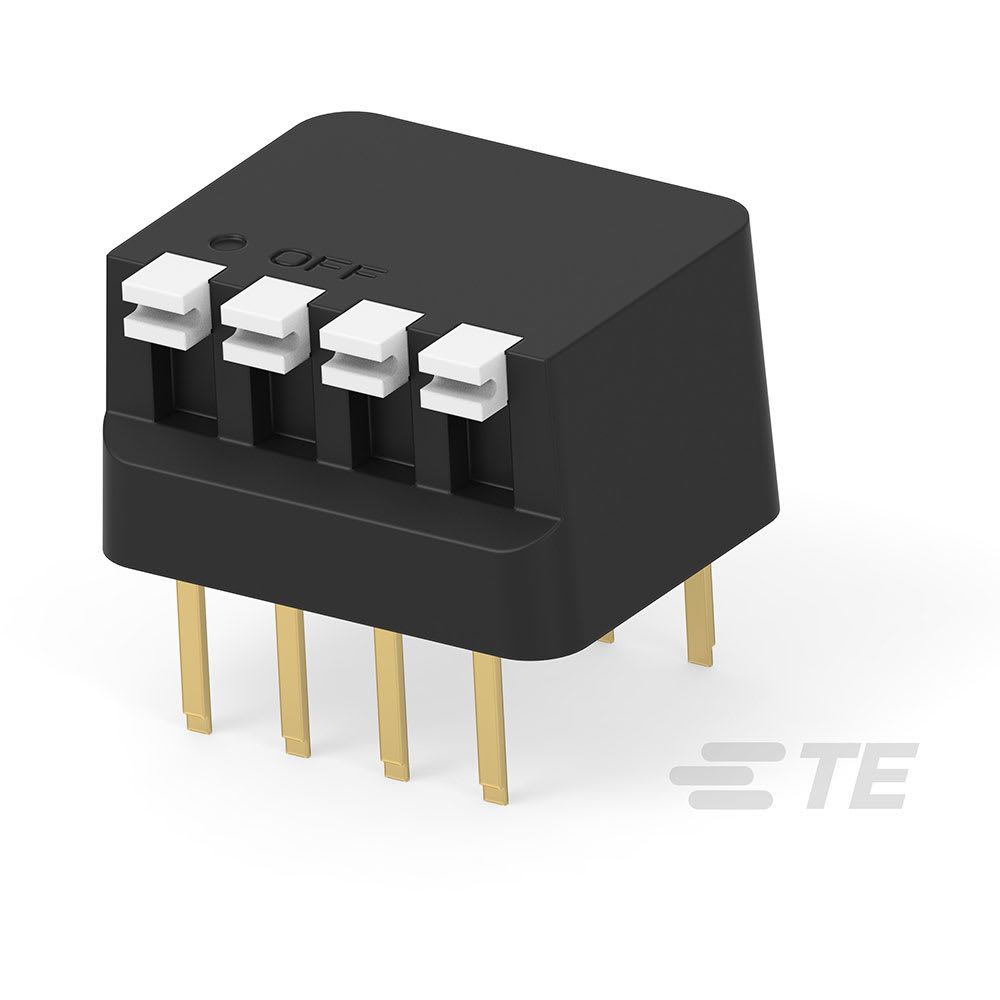

Product Images
