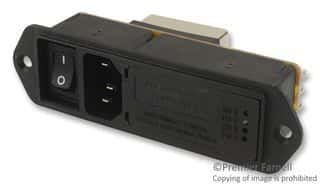

Filtered power entry module with a 3-position switch, rated for 250VAC at 5A. Features include a male connector, solder termination, and a single port. Designed for AC applications, it offers a 0.93mH inductance and a leakage current of 2uA. Panel mounting with flanges and screws is supported, with a straight orientation. Operating temperature range is -10°C to 40°C.
Frequency0.15 to 30 MHz
PackageModule
Current4A
Resistance6GR
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the TE Connectivity 5EHM4S datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
TE Connectivity 5EHM4S technical specifications.
General
| Application(s) | AC |
| Package/Case | Module |
| Current | 4A |
| Current Rating | 5A |
| Depth | 57.15mm |
| ELV | Non-Compliant |
| Fuse | Yes |
| Gender | Male |
| Inductance | 0.93mH |
| Lead Free | Lead Free |
| Leakage Current | 2uA |
| Max Current Rating | 5A |
| Max Operating Temperature | 40°C |
| Min Operating Temperature | -10°C |
| Max Voltage Rating (AC) | 240V |
| Mount | Panel, Flanges, Screw |
| Number of Contacts | 3 |
| Number of Poles | 2 |
| Number of Ports | 1 |
| Number of Positions | 3 |
| Operating Frequency | 0.15 to 30 MHz |
| Orientation | Straight |
| Package Quantity | 16 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| Resistance | 6GR |
| RoHS Compliant | Yes |
| Series | M |
| Termination | Solder |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 240V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 5EHM4S Datasheet
Download the complete datasheet for TE Connectivity 5EHM4S to view detailed technical specifications.
