DPDT signal relay with a 12V DC coil voltage, 8.3mA coil current, and 100mW coil power. Features a 2A contact current rating with gold and ruthenium contact material, and a 220V DC contact voltage rating. Offers a 3ms operate and release time, with a -40°C to 85°C operating temperature range. Through-hole PCB mounting with a compact 6mm width, 5.8mm height, and 6mm depth. RoHS and ELV compliant.
Current Rating2A
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
TE Connectivity 6-1462037-6 technical specifications.
General
| Actuating System | DC |
| Coil Current | 8.3mA |
| Coil Power | 100mW |
| Coil Resistance | 1.44kR |
| Coil Type | Bipolar |
| Coil Voltage (DC) | 12V |
| Contact Current Rating | 2A |
| Contact Material | Gold, Ruthenium |
| Contact Plating | Gold |
| Contact Voltage Rating (DC) | 220V |
| Current Rating | 2A |
| Depth | 6mm |
| ELV | Compliant |
| Height | 5.8mm |
| Insertion Loss | -0.03dB |
| Length | 10inch |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Number of Contacts | 2 |
| Operate Time | 3ms |
| Package Quantity | 1000 |
| Packaging | Rail/Tube |
| Relay Type | Relay |
| Release Time | 3ms |
| RoHS Compliant | Yes |
| Series | IM, AXICOM |
| Switching Current | 2A |
| Termination | PCB |
| Throw Configuration | DPDT |
| DC Rated Voltage | 12V |
| Width | 6mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 6-1462037-6 Datasheet
Download the complete datasheet for TE Connectivity 6-1462037-6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

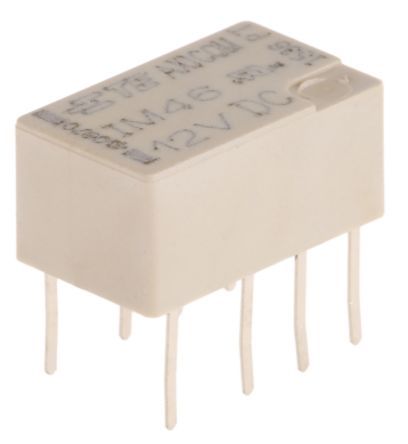

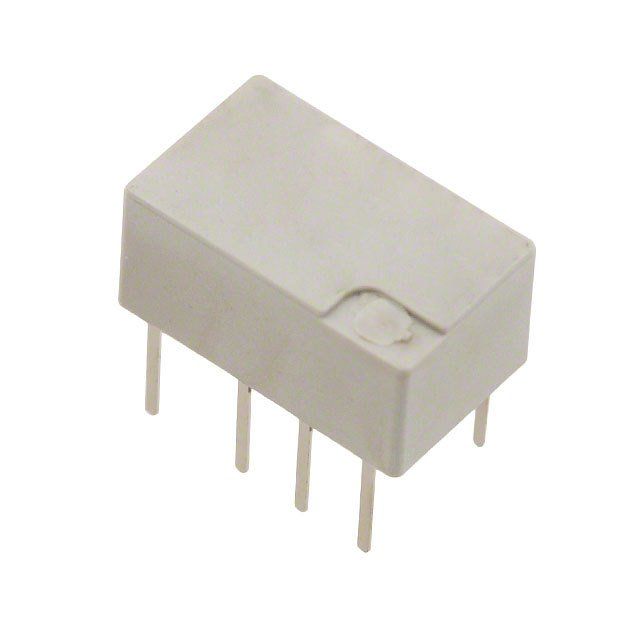

Product Images
