Technical Specifications
TE Connectivity 6-1462039-0 technical specifications.
General
| Coil Current | 11.67mA |
| Coil Resistance | 1.029kR |
| Coil Voltage (DC) | 12V |
| Contact Material | Gold, Ruthenium |
| Length | 10mm |
| Max Current Rating | 2A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 220V |
| Mount | Through Hole |
| Operate Time | 1ms |
| Package Quantity | 1000 |
| Throw Configuration | DPDT |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 6-1462039-0 Datasheet
Download the complete datasheet for TE Connectivity 6-1462039-0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

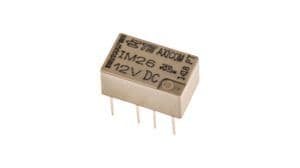

Product Images
