3-position, 1-port power entry module with integrated EMI filtering, rated for 250VAC and 6A per contact. Features quick connect termination and a capacitance of 101.5nF. Designed for panel mounting with flanges and screws, operating within a temperature range of -10°C to 40°C. This RoHS compliant module has a leakage current of 220uA and is suitable for general purpose applications.
Frequency100 to 30000 kHz
PackageModule
Current6A
Capacitance101.5nF
Quick Jump:
Technical Specifications
TE Connectivity 6EEJ1 technical specifications.
General
| Capacitance | 101.5nF |
| Package/Case | Module |
| Current | 6A |
| Current Rating | 6A |
| Depth | 54.61mm |
| ELV | Compliant |
| Fuse | No |
| Lead Free | Contains Lead |
| Leakage Current | 220uA |
| Length | 51.76mm |
| Max Current Rating | 6A |
| Max Operating Temperature | 40°C |
| Min Operating Temperature | -10°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Panel, Flanges, Screw |
| Number of Contacts | 3 |
| Number of Ports | 1 |
| Number of Positions | 3 |
| Operating Frequency | 100 to 30000 kHz |
| Orientation | Straight |
| Package Quantity | 40 |
| Packaging | Bulk |
| Primary Type | GENERAL PURPOSE |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | EEJ, Corcom |
| Termination | Quick Connect |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
| Width | 51.76mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 6EEJ1 Datasheet
Download the complete datasheet for TE Connectivity 6EEJ1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

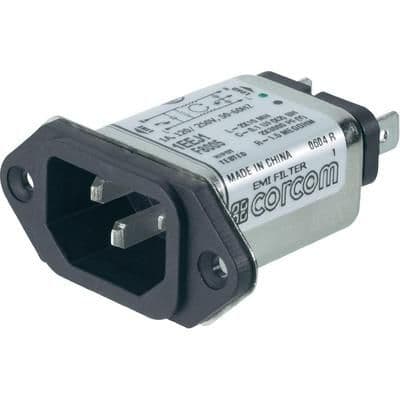

Product Images
