SPDT General Purpose Power Relay featuring a 24 VDC coil with 1.2kΩ resistance, 20mA coil current, and 480mW coil power. Offers a 5A contact current rating with Silver/Gold contact material, suitable for 250VAC and 400VAC applications. Through-hole mounting with PCB termination, this relay operates within a -40°C to 70°C temperature range and boasts an IP67 rating.
Current Rating5A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 7-1393215-5 technical specifications.
General
| Coil Current | 20mA |
| Coil Power | 480mW |
| Coil Resistance | 1.2kR |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 5A |
| Contact Material | Silver, Gold |
| Contact Voltage Rating (AC) | 250V |
| Current Rating | 5A |
| Depth | 10.4mm |
| Dropout Voltage | 2.4V |
| ELV | Compliant |
| Height | 25.1mm |
| Length | 28mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 400V |
| Mount | Through Hole |
| Number of Contacts | 1 |
| Operate Time | 7ms |
| Package Quantity | 20 |
| Packaging | Bulk |
| Ratings | IP67 |
| Reach SVHC Compliant | Unknown |
| Relay Type | General Purpose |
| Release Time | 3ms |
| RoHS Compliant | Yes |
| Series | V23057, SCHRACK |
| Termination | PCB |
| Throw Configuration | SPDT |
| Width | 10.4mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 7-1393215-5 Datasheet
Download the complete datasheet for TE Connectivity 7-1393215-5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

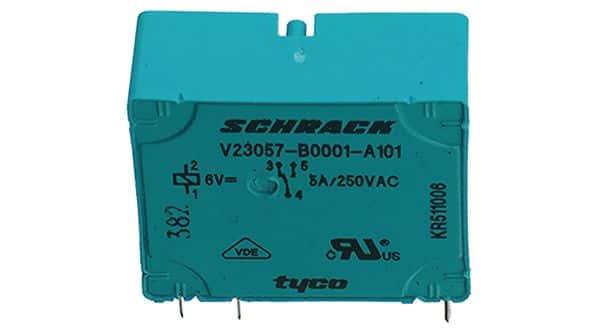

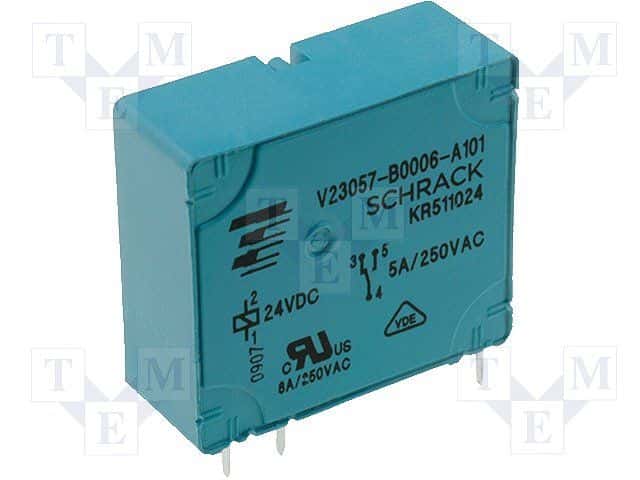

Product Images
