General purpose SPST signal relay featuring an 8A contact current rating and silver contact material. Operates with a 12V DC coil voltage, 19.14mA coil current, and 230mW coil power. Offers a 9ms operate time and 5ms release time, with a maximum operating temperature of 70°C and minimum of -40°C. Through-hole mounting with PC pin termination, this RoHS compliant relay is packaged in a box of 500 units.
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 7-1393224-9 technical specifications.
General
| Coil Current | 19.14mA |
| Coil Power | 230mW |
| Coil Resistance | 627R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 12V |
| Contact Current Rating | 8A |
| Contact Material | Silver |
| Contact Type | 1 maker |
| Depth | 10.1mm |
| Height | 12.3mm |
| Length | 28.5mm |
| Max Current Rating | 8A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 400V |
| Mount | Through Hole |
| Operate Time | 9ms |
| Package Quantity | 500 |
| Packaging | Box |
| Radiation Hardening | No |
| Relay Type | General Purpose |
| Release Time | 5ms |
| RoHS Compliant | Yes |
| Series | RY, SCHRACK |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 400V |
| Width | 10.1mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 7-1393224-9 Datasheet
Download the complete datasheet for TE Connectivity 7-1393224-9 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

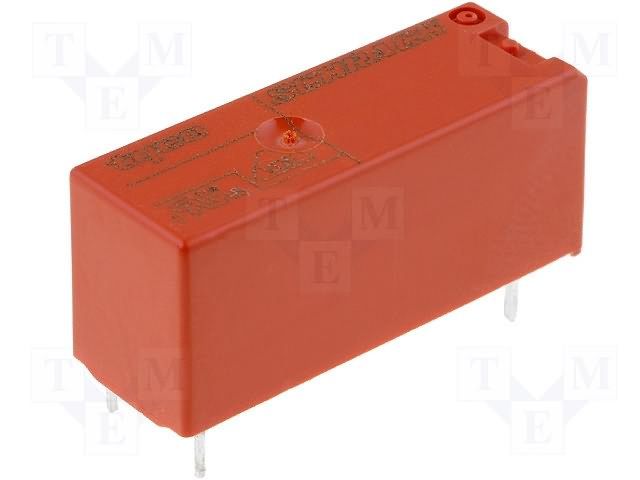

Product Images
