Package125
Current Rating15A
MountingPanel
Quick Jump:
Technical Specifications
TE Connectivity 7014PB technical specifications.
General
| Actuating System | DC |
| Approvals | UL, CSA, CE |
| Package/Case | 125 |
| Coil Voltage (DC) | 125V |
| Contact Current Rating | 10A |
| Current Rating | 15A |
| Depth | 65.3mm |
| Length | 114.8mm |
| Max Current Rating | 10A |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (AC) | 240V |
| Mount | Panel |
| Relay Type | Relay |
| RoHS Compliant | No |
| Termination | Screw |
| Throw Configuration | 4PDT |
| Voltage Rating (AC) | 240V |
Compliance
| RoHS | Not Compliant |
Datasheet
TE Connectivity 7014PB Datasheet
Download the complete datasheet for TE Connectivity 7014PB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

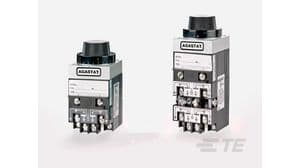

Product Images
