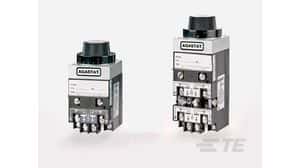

The 7024AB is a 120V 10A 4PDT time delay relay with a coil voltage of 110.12kV. It has a maximum operating temperature of 75°C and a minimum operating temperature of -30°C. The relay is UL, CSA, and CE approved and has a width of 82.5mm. It is a non-lead free device and is not RoHS compliant.
Sign in to ask questions about the TE Connectivity 7024AB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TE Connectivity 7024AB technical specifications.
| Actuating System | AC |
| Approvals | UL, CSA, CE |
| Package/Case | 120 |
| Coil Voltage (AC) | 110.12kV |
| Contact Current Rating | 10A |
| Current Rating | 15A |
| Depth | 3.32inch |
| ELV | Non-Compliant |
| Lead Free | Not Applicable |
| Length | 5.82inch |
| Max Current Rating | 10A |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (AC) | 240V |
| Mount | Panel |
| Nominal Input Voltage | 120V |
| Relay Type | Relay |
| RoHS Compliant | No |
| Series | 7000, AGASTAT |
| Termination | Screw |
| Throw Configuration | 4PDT |
| Voltage Rating (AC) | 20V |
| Width | 82.5mm |
| RoHS | Not Compliant |
