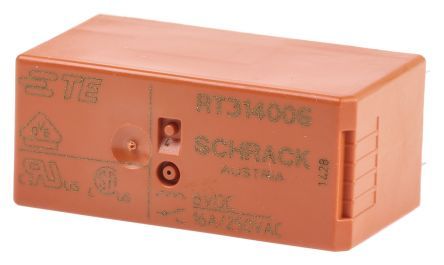

DPST signal relay for power applications, featuring a 6VDC coil voltage with 400mW coil power and 90 Ohm resistance. This through-hole mount relay offers a 16A contact current rating with silver contacts and a SPDT contact type. Operating within a -40°C to 85°C temperature range, it boasts 8ms operate and 6ms release times, with UL, CSA, and VDE approvals. Packaged in a DIP case, this RoHS compliant component is suitable for PCB mounting.
PackageDIP
Current Rating16A
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
TE Connectivity 9-1393239-3 technical specifications.
General
| Application(s) | POWER |
| Approvals | UL, CSA, VDE |
| Package/Case | DIP |
| Coil Current | 66.7mA |
| Coil Power | 400mW |
| Coil Resistance | 90R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 6V |
| Contact Current Rating | 16A |
| Contact Material | Silver |
| Contact Type | 1 change-over |
| Current Rating | 16A |
| Depth | 12.7mm |
| Height | 15.7mm |
| Length | 29mm |
| Max Current Rating | 16A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 400V |
| Mount | Through Hole, PCB |
| Operate Time | 8ms |
| Package Quantity | 500 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | Unknown |
| Relay Type | General Purpose |
| Release Time | 6ms |
| RoHS Compliant | Yes |
| Series | RT1, SCHRACK |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 400V |
| DC Rated Voltage | 6V |
| Width | 12.7mm |
Compliance
| RoHS | Compliant |
