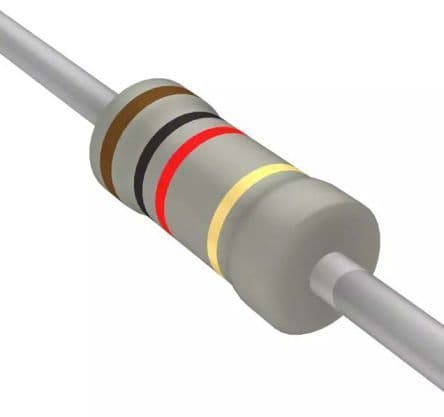

Axial leaded, through-hole mount carbon film fixed resistor with 10kΩ resistance and 5% tolerance. Features a 200V DC rated voltage, 0.25W (250mW) power dissipation, and a temperature coefficient of 450ppm/°C. Operating temperature range is -55°C to +155°C. The component has axial terminations with a lead diameter of 0.45mm and a body measuring 3.5mm in length and 1.85mm in diameter.
PackageAxial
Resistance10kR
Voltage Rating200V
MountingAxial
Quick Jump:
Technical Specifications
TE Connectivity CFR16J10K technical specifications.
General
| Package/Case | Axial |
| Diameter | 1.85mm |
| ELV | Compliant |
| Lead Diameter | 0.45mm |
| Length | 3.5mm |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 250mW |
| Military Standard | Not |
| Mount | Axial |
| Number of Resistors | 1 |
| Number of Terminations | 2 |
| Operating Supply Voltage | 200V |
| Packaging | Cut Tape |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 10kR |
| Resistance Tolerance | 5% |
| Resistor Type | Thin Film |
| RoHS Compliant | Yes |
| Series | CFR16, Neohm |
| Technology | CARBON FILM |
| Termination | Axial |
| Tolerance | 5% |
| Voltage Rating | 200V |
| DC Rated Voltage | 200V |
Compliance
| RoHS | Compliant |
