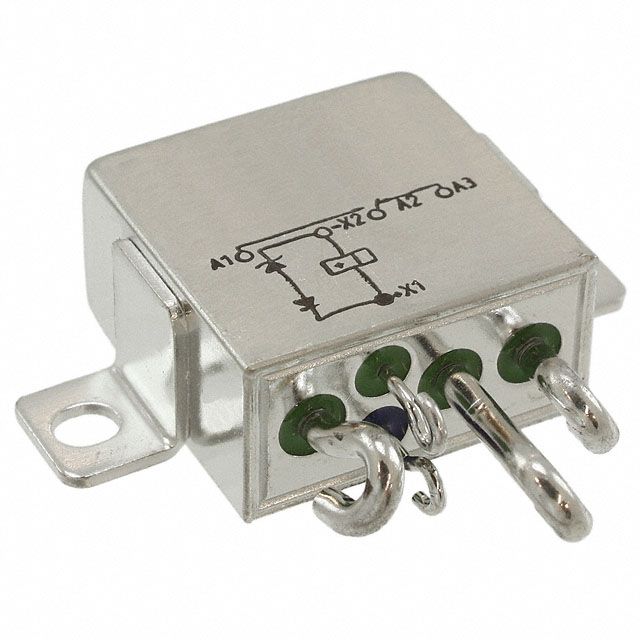

SPDT Power Relay with a 25A contact current rating and 28VDC coil voltage. Features a non-latching coil type, 87.5mA coil current, and 320 Ohm coil resistance. Designed for chassis mounting with flanges, this general-purpose relay offers a 10ms operate and release time. Operates across a wide temperature range from -70°C to 125°C, with a contact material of Silver, Cadmium and a mechanical life of 50,000 hours.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TE Connectivity FCA-125-24 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | 125 |
| Coil Current | 87.5mA |
| Coil Resistance | 320R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 28V |
| Contact Current Rating | 25A |
| Contact Material | Silver, Cadmium |
| Current Rating | 25A |
| Depth | 13.2mm |
| Height | 25.7mm |
| Length | 43.4mm |
| Life (Hours) | 50000Hour |
| Max Current Rating | 25A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -70°C |
| Max Voltage Rating (AC) | 115V |
| Max Voltage Rating (DC) | 28V |
| Mount | Chassis Mount, Flanges |
| Operate Time | 10ms |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Relay Type | General Purpose |
| Release Time | 10ms |
| RoHS Compliant | No |
| Series | Military, MIL-R-6106/19, FCA, CII |
| Termination | Solder |
| Throw Configuration | SPDT |
| RoHS | Not CompliantNo |
