Axial leaded, through-hole mount fusible resistor with thin film technology. Features 0.22 ohm resistance with a 5% tolerance and 250mW power dissipation. Operates across a temperature range of -55°C to 155°C with a 250V voltage rating. Compliant with RoHS standards. Packaged in tape and reel.
PackageAxial
Resistance220mR
Voltage Rating250V
MountingAxial
Quick Jump:
Technical Specifications
TE Connectivity FRN25JR22 technical specifications.
General
Package/Case
Axial
Diameter
2.3mm
ELV
Compliant
Length
6.3mm
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Max Power Dissipation
250mW
Military Standard
Not
Mount
Axial
Number of Resistors
1
Number of Terminations
2
Package Quantity
4000
Packaging
Tape and Reel
Reach SVHC Compliant
Unknown
Resistance
220mR
Resistance Tolerance
5%
Resistor Type
Thin Film
RoHS Compliant
Yes
Series
FRN, Neohm
Technology
THIN FILM
Termination
Axial
Tolerance
5%
Voltage Rating
250V
DC Rated Voltage
250V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity FRN25JR22 Datasheet
Download the complete datasheet for TE Connectivity FRN25JR22 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

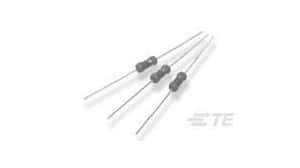

Product Images
