Axial leaded, through-hole mount fusible resistor with 0.47 ohm resistance and 5% tolerance. Features thin film technology, 0.25W power rating, and a 250V DC voltage rating. Operating temperature range is -55°C to 155°C. Tin plated contacts and axial terminations. RoHS compliant.
PackageAxial
Resistance470mR
Voltage Rating250V
MountingAxial
Quick Jump:
Technical Specifications
TE Connectivity FRN25JR47 technical specifications.
General
Package/Case
Axial
Contact Plating
Tin
Diameter
2.3mm
ELV
Compliant
Length
6.3mm
Max Operating Temperature
155°C
Max Power Dissipation
250mW
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Axial
Number of Resistors
1
Number of Terminations
2
Package Quantity
4000
Packaging
Tape and Reel
Reach SVHC Compliant
Unknown
Resistance
470mR
Resistance Tolerance
5%
Resistor Type
Thin Film
RoHS Compliant
Yes
Series
FRN, Neohm
Technology
THIN FILM
Termination
Axial
Tolerance
5%
Voltage Rating
250V
DC Rated Voltage
250V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity FRN25JR47 Datasheet
Download the complete datasheet for TE Connectivity FRN25JR47 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

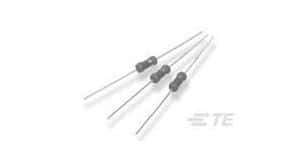

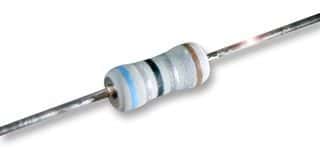

Product Images
