Through-hole metal film fixed resistor, 1k Ohm resistance with 0.1% tolerance. Features 0.25W (1/4W) power dissipation, 350V DC rated voltage, and a wide operating temperature range of -55°C to 155°C. Conformal coated with axial leads, 2.5mm body diameter, and 7.2mm body length. RoHS compliant and supplied in a bandoliered strip packaging.
PackageAxial
Resistance1kR
Voltage Rating350V
MountingAxial
Quick Jump:
Technical Specifications
TE Connectivity H81K0BYA technical specifications.
General
Body Diameter
2.5mm
Body Length
7.2mm
Package/Case
Axial
Diameter
2.5mm
ELV
Compliant
Lead Diameter
0.6mm
Lead Length
30mm
Lead/Base Style
Axial
Length
7.2mm
Max Operating Temperature
155°C
Max Power Dissipation
250mW
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Axial
Number of Resistors
1
Number of Terminations
2
Operating Supply Voltage
350V
Package Quantity
250
Packaging
Strip
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
1kR
Resistance Tolerance
0.1%
Resistor Type
Thin Film
RoHS Compliant
Yes
Series
Holco, Holsworthy
Technology
METAL FILM
Termination
Axial
Tolerance
0.1%
Voltage Rating
350V
DC Rated Voltage
350V
Weight
0.008466oz
Compliance
RoHS
Compliant
Datasheet
TE Connectivity H81K0BYA Datasheet
Download the complete datasheet for TE Connectivity H81K0BYA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

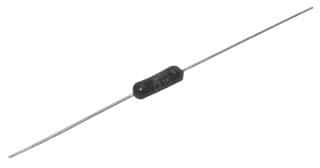

Product Images
