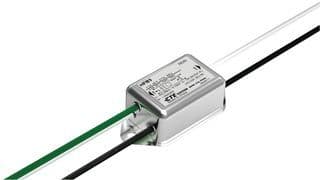

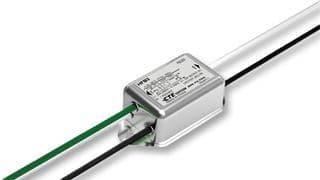

The HFB3 EMI filter from TE Connectivity is a 1-phase power line filter rated for 277V and 500mA. It has a maximum operating temperature of 50°C and a minimum operating temperature of -10°C. The filter is designed for panel mount with flanges and has a termination type of screw. It is compliant with RoHS regulations.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TE Connectivity HFB3 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Current Rating | 500mA |
| Depth | 22.2mm |
| Frequency | 50Hz |
| Height | 36.1mm |
| Leakage Current | 210uA |
| Length | 76.2mm |
| Max Current Rating | 500mA |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | -10°C |
| Max Voltage Rating (AC) | 277.277kV |
| Mount | Panel, Flanges |
| Number of Phases | 1 |
| Operating Frequency | 50,60 Hz |
| Package Quantity | 40 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | FB |
| Termination | Screw |
| Voltage Rating | 277V |
| Voltage Rating (AC) | 1V |
| DC Rated Voltage | 277V |
| RoHS | Compliant |
Download the complete datasheet for TE Connectivity HFB3 to view detailed technical specifications.
