Power resistor, wirewound technology, 16W maximum power dissipation, 10 ohm resistance with 5% tolerance. Features chassis mount package with aluminum housing, operating temperature range of -55°C to 200°C, and a voltage rating of 265V. This general purpose fixed resistor is RoHS compliant.
PackageAluminum
Resistance10R
Voltage Rating265V
MountingChassis Mount
Quick Jump:
Technical Specifications
TE Connectivity HSA1010RJ technical specifications.
General
| Package/Case | Aluminum |
| Depth | 21mm |
| ELV | Compliant |
| Height | 11mm |
| Lead/Base Style | Fixed |
| Length | 21mm |
| Max Operating Temperature | 200°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 16W |
| Military Standard | Not |
| Mount | Chassis Mount |
| Number of Resistors | 1 |
| Number of Terminations | 2 |
| Operating Supply Voltage | 265V |
| Package Quantity | 200 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 10R |
| Resistance Tolerance | 5% |
| Resistor Type | Wirewound, Power resistor |
| RoHS Compliant | Yes |
| Series | HS, CGS |
| Technology | WIRE WOUND |
| Termination | Solder |
| Tolerance | 5% |
| Voltage Rating | 265V |
| DC Rated Voltage | 265V |
| Width | 21mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity HSA1010RJ Datasheet
Download the complete datasheet for TE Connectivity HSA1010RJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

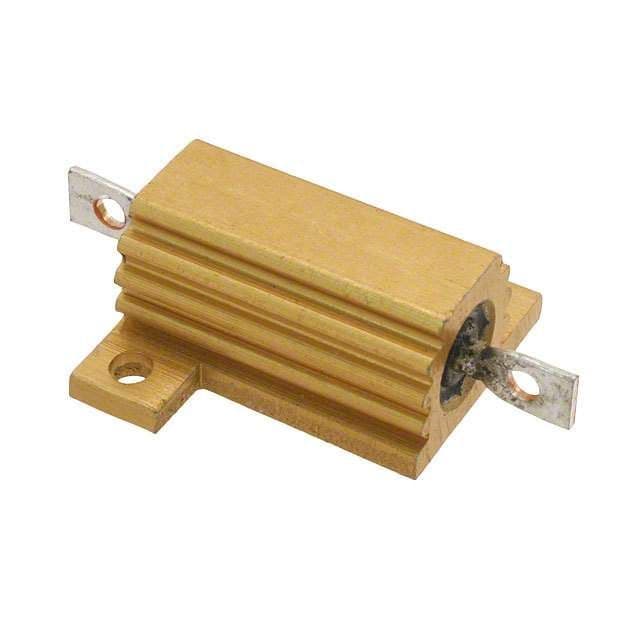

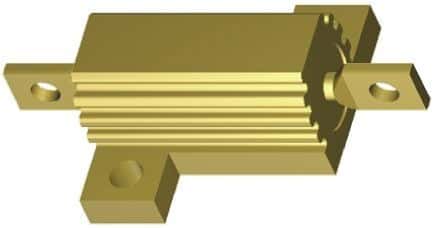

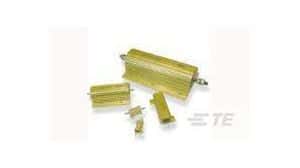

Product Images
