Chassis mount wirewound power resistor with 3.3kΩ resistance and 5% tolerance. Features 8W rated power dissipation, expandable to 16W, and a 265V voltage rating. Operates across a -55°C to 200°C temperature range. Housed in a durable aluminum package with solder terminations.
PackageAluminum
Resistance3.3kR
Voltage Rating265V
MountingChassis Mount
Quick Jump:
Technical Specifications
TE Connectivity HSA103K3J technical specifications.
General
| Package/Case | Aluminum |
| Depth | 21mm |
| ELV | Compliant |
| Height | 11mm |
| Lead/Base Style | Fixed |
| Length | 21mm |
| Max Operating Temperature | 200°C |
| Max Power Dissipation | 16W |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Chassis Mount |
| Number of Resistors | 1 |
| Number of Terminations | 2 |
| Operating Supply Voltage | 265V |
| Package Quantity | 200 |
| Packaging | Tray |
| Radiation Hardening | No |
| Resistance | 3.3kR |
| Resistor Type | Wirewound, Power resistor |
| RoHS Compliant | Yes |
| Series | HS, CGS |
| Technology | WIRE WOUND |
| Termination | Solder |
| Tolerance | 5% |
| Voltage Rating | 265V |
| Width | 21mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity HSA103K3J Datasheet
Download the complete datasheet for TE Connectivity HSA103K3J to view detailed technical specifications.
No datasheet is available for this part.

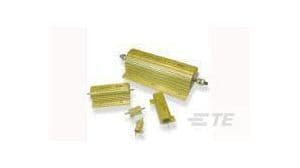

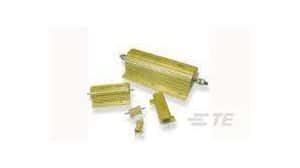

Product Images
