Chassis mount wirewound power resistor with 1 Ohm resistance and 5% tolerance. Features 25W power dissipation, 550V voltage rating, and a wide operating temperature range of -55°C to 200°C. Aluminum housed package with axial terminations, suitable for solder applications. RoHS compliant.
PackageAluminum
Resistance1R
Voltage Rating550V
MountingChassis Mount
Quick Jump:
Technical Specifications
TE Connectivity HSA251R0J technical specifications.
General
Package/Case
Aluminum
ELV
Compliant
Height
15mm
Lead/Base Style
Fixed
Length
29mm
Max Operating Temperature
200°C
Min Operating Temperature
-55°C
Max Power Dissipation
25W
Mount
Chassis Mount
Number of Resistors
1
Number of Terminations
2
Package Quantity
100
Packaging
Tray
Reach SVHC Compliant
No
Resistance
1R
Resistance Tolerance
5%
Resistor Type
Wirewound, Power resistor
RoHS Compliant
Yes
Series
HS, CGS
Technology
WIRE WOUND
Termination
Solder
Tolerance
5%
Voltage Rating
550V
DC Rated Voltage
500V
Width
28mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity HSA251R0J Datasheet
Download the complete datasheet for TE Connectivity HSA251R0J to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

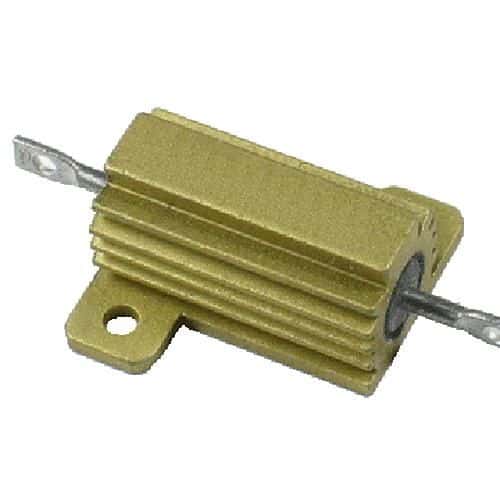

Product Images
