TE Connectivity
HSA25330RJ
Res Wirewound 330 Ohm 5% 25W ±30ppm/°C Aluminum Housed AXL Chassis Mount Loose/Tray
PackageAluminum
Resistance330R
Voltage Rating550V
MountingChassis Mount
Quick Jump:
Technical Specifications
TE Connectivity HSA25330RJ technical specifications.
General
Package/Case
Aluminum
Depth
28mm
ELV
Compliant
Height
15mm
Lead/Base Style
Fixed
Length
51.8mm
Mount
Chassis Mount
Number of Resistors
1
Number of Terminations
2
Packaging
Tray
Reach SVHC Compliant
No
Resistance
330R
Resistance Tolerance
5%
Resistor Type
Wirewound, Power resistor
RoHS Compliant
Yes
Series
HSA25
Technology
WIRE WOUND
Termination
Solder
Tolerance
5%
Voltage Rating
550V
DC Rated Voltage
500V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity HSA25330RJ Datasheet
Download the complete datasheet for TE Connectivity HSA25330RJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

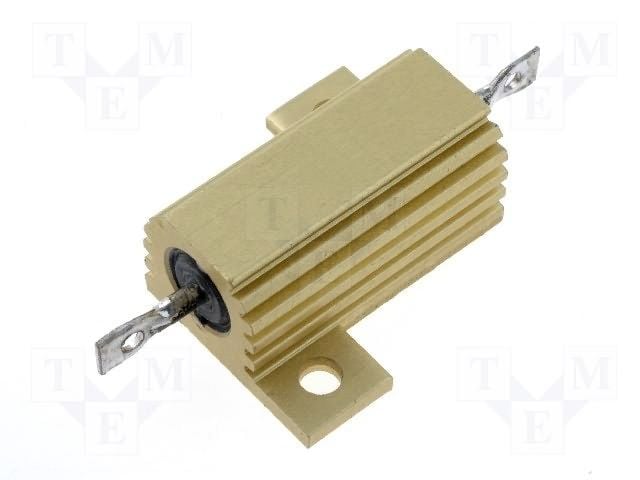

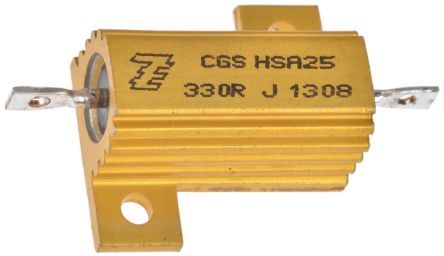

Product Images
