TE Connectivity
HSA2539RJ
Res Wirewound 39 Ohm 5% 25W ±50ppm/°C Aluminum Housed AXL Chassis Mount Loose/Tray
Resistance39R
Voltage Rating550V
MountingChassis Mount
Quick Jump:
Technical Specifications
TE Connectivity HSA2539RJ technical specifications.
General
ELV
Compliant
Height
15mm
Lead/Base Style
Fixed
Length
29mm
Max Operating Temperature
200°C
Min Operating Temperature
-55°C
Max Power Dissipation
25W
Mount
Chassis Mount
Number of Resistors
1
Number of Terminations
2
Package Quantity
100
Packaging
Tray
Resistance
39R
Resistor Type
Wirewound, Power resistor
RoHS Compliant
Yes
Series
HS, CGS
Technology
WIRE WOUND
Termination
Solder
Tolerance
5%
Voltage Rating
550V
DC Rated Voltage
500V
Width
28mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity HSA2539RJ Datasheet
Download the complete datasheet for TE Connectivity HSA2539RJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

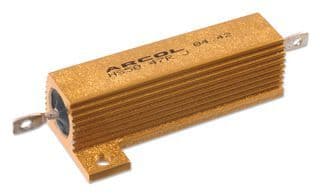

Product Images
