Chassis mount wirewound power resistor with 25W maximum power dissipation and 5% tolerance. Features a 0.5 ohm resistance value, 550V operating supply voltage, and a wide operating temperature range from -55°C to 200°C. Constructed with an aluminum package and solder terminations, this RoHS compliant component is designed for general applications.
PackageAluminum
Resistance500mR
Voltage Rating550V
MountingChassis Mount
Quick Jump:
Technical Specifications
TE Connectivity HSA25R50J technical specifications.
General
| Package/Case | Aluminum |
| Depth | 28mm |
| ELV | Compliant |
| Height | 15mm |
| Lead/Base Style | Fixed |
| Length | 29mm |
| Max Operating Temperature | 200°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 25W |
| Military Standard | Not |
| Mount | Chassis Mount |
| Number of Resistors | 1 |
| Number of Terminations | 2 |
| Operating Supply Voltage | 550V |
| Package Quantity | 100 |
| Packaging | Tray |
| Radiation Hardening | No |
| Resistance | 500mR |
| Resistor Type | Wirewound, Power resistor |
| RoHS Compliant | Yes |
| Series | HS, CGS |
| Technology | WIRE WOUND |
| Termination | Solder |
| Tolerance | 5% |
| Voltage Rating | 550V |
| Voltage Rating (AC) | 550V |
| DC Rated Voltage | 550V |
| Width | 28mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity HSA25R50J Datasheet
Download the complete datasheet for TE Connectivity HSA25R50J to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

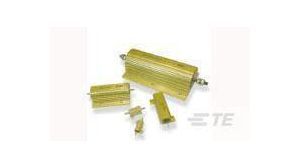

Product Images
