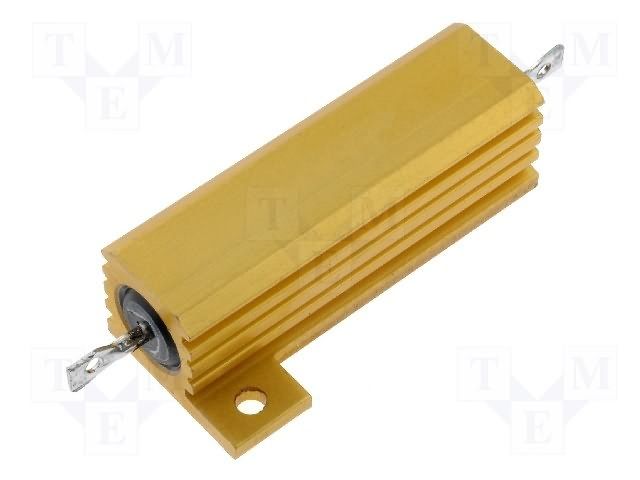

Chassis mount wirewound power resistor with 220 Ohm resistance and 5% tolerance. Features 50W maximum power dissipation, 1.25kV voltage rating, and operates from -55°C to 200°C. Aluminum housed with solder terminations, measuring 51mm in length and 30mm in width.
PackageAluminum
Resistance220R
Voltage Rating1.25kV
MountingChassis Mount
Quick Jump:
Technical Specifications
TE Connectivity HSA50220RJ technical specifications.
General
Package/Case
Aluminum
ELV
Compliant
Height
17mm
Lead/Base Style
Fixed
Length
51mm
Max Operating Temperature
200°C
Min Operating Temperature
-55°C
Max Power Dissipation
50W
Mount
Chassis Mount
Number of Resistors
1
Number of Terminations
2
Package Quantity
100
Packaging
Tray
Reach SVHC Compliant
No
Resistance
220R
Resistance Tolerance
5%
Resistor Type
Wirewound, Power resistor
RoHS Compliant
Yes
Series
HS, CGS
Technology
WIRE WOUND
Termination
Solder
Tolerance
5%
Voltage Rating
1.25kV
DC Rated Voltage
1.25kV
Width
30mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity HSA50220RJ Datasheet
Download the complete datasheet for TE Connectivity HSA50220RJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
