Chassis mount wirewound power resistor with 50W power dissipation and 22 ohm resistance. Features 5% resistance tolerance, 50ppm temperature coefficient, and a maximum operating temperature of 200°C. Encased in aluminum with solder terminations, this general purpose fixed resistor operates from -55°C to 200°C and has a voltage rating of 1.25kV. RoHS compliant.
PackageAluminum
Resistance22R
Voltage Rating1.25kV
MountingChassis Mount
Quick Jump:
Technical Specifications
TE Connectivity HSA5022RJ technical specifications.
General
| Package/Case | Aluminum |
| ELV | Compliant |
| Height | 17mm |
| Lead/Base Style | Fixed |
| Length | 51mm |
| Max Operating Temperature | 200°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 50W |
| Mount | Chassis Mount |
| Number of Resistors | 1 |
| Number of Terminations | 2 |
| Package Quantity | 100 |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| Resistance | 22R |
| Resistance Tolerance | 5% |
| Resistor Type | Wirewound, Power resistor |
| RoHS Compliant | Yes |
| Series | HS, CGS |
| Technology | WIRE WOUND |
| Termination | Solder |
| Tolerance | 5% |
| Voltage Rating | 1.25kV |
| DC Rated Voltage | 1.25kV |
| Width | 30mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity HSA5022RJ Datasheet
Download the complete datasheet for TE Connectivity HSA5022RJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

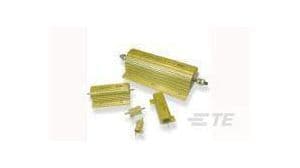

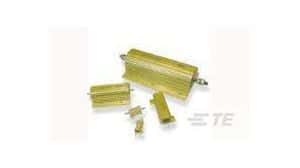

Product Images
