Wirewound power resistor with 3.3 Ohm resistance and 5% tolerance, rated for 50W maximum power dissipation. Features a robust aluminum housing for chassis mounting, operating across a temperature range of -55°C to 200°C. This component offers a 1.25kV voltage rating and is supplied in trays of 100 units.
PackageAluminum
Resistance3.3R
Voltage Rating1.25kV
MountingChassis Mount
Quick Jump:
Technical Specifications
TE Connectivity HSA503R3J technical specifications.
General
| Package/Case | Aluminum |
| Depth | 30mm |
| ELV | Compliant |
| Height | 17mm |
| Lead/Base Style | Fixed |
| Length | 51mm |
| Max Operating Temperature | 200°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 50W |
| Military Standard | Not |
| Mount | Chassis Mount |
| Number of Resistors | 1 |
| Number of Terminations | 2 |
| Package Quantity | 100 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 3.3R |
| Resistance Tolerance | 5% |
| Resistor Type | Wirewound, Power resistor |
| RoHS Compliant | Yes |
| Series | HS, CGS |
| Technology | WIRE WOUND |
| Termination | Solder |
| Tolerance | 5% |
| Voltage Rating | 1.25kV |
| DC Rated Voltage | 1.25kV |
| Width | 30mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity HSA503R3J Datasheet
Download the complete datasheet for TE Connectivity HSA503R3J to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

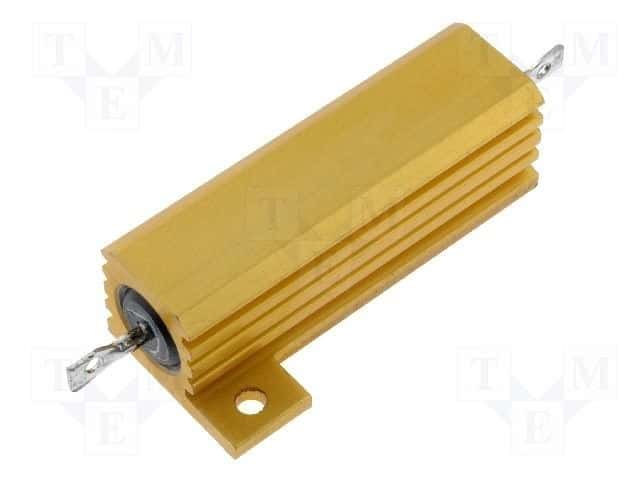

Product Images
