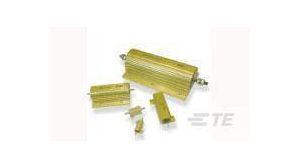

Chassis mount wirewound power resistor with 5.6 kΩ resistance and 5% tolerance. Features 50W maximum power dissipation, a wide operating temperature range of -55°C to 200°C, and a 1.25kV voltage rating. Housed in aluminum with axial terminations, this component is RoHS compliant and designed for chassis mounting.
PackageAluminum
Resistance5.6kR
Voltage Rating1.25kV
MountingChassis Mount
Quick Jump:
Technical Specifications
TE Connectivity HSA505K6J technical specifications.
General
Package/Case
Aluminum
Depth
30mm
ELV
Compliant
Height
16.9926mm
Lead/Base Style
Fixed
Length
72.5mm
Max Operating Temperature
200°C
Min Operating Temperature
-55°C
Max Power Dissipation
50W
Military Standard
Not
Mount
Chassis Mount
Number of Resistors
1
Number of Terminations
2
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
5.6kR
Resistance Tolerance
5%
Resistor Type
Wirewound, Power resistor
RoHS Compliant
Yes
Series
HS, CGS
Technology
WIRE WOUND
Termination
Solder
Tolerance
5%
Voltage Rating
1.25kV
DC Rated Voltage
1.25kV
Width
29.9974mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity HSA505K6J Datasheet
Download the complete datasheet for TE Connectivity HSA505K6J to view detailed technical specifications.
